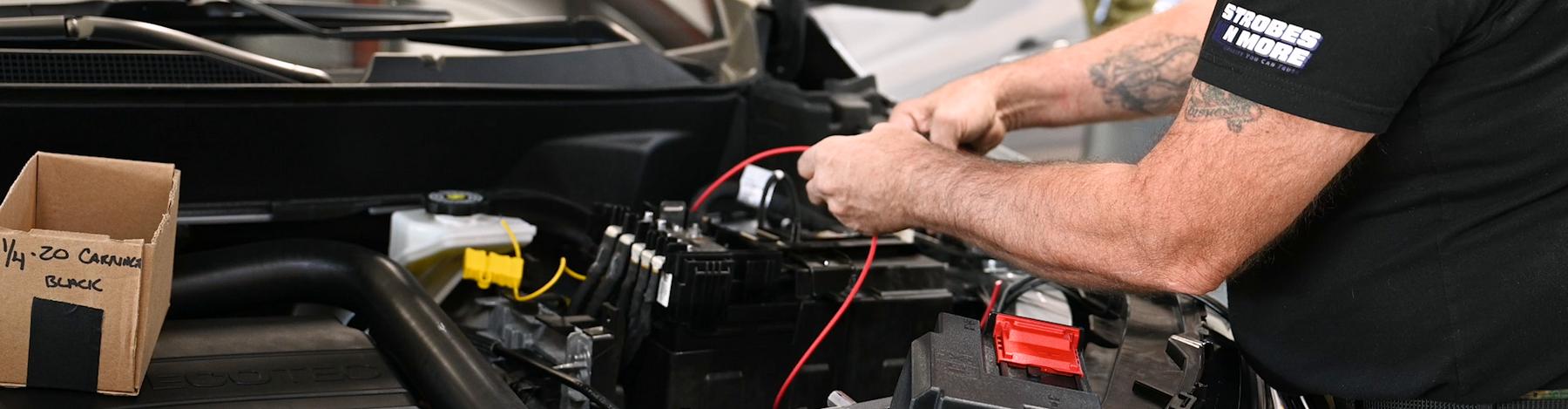

Setup and Sync LEDs to X-Patterns

Creating an X-pattern with LED modules enhances the visibility and effectiveness of warning lights on emergency and utility vehicles. This pattern involves alternating flashes between diagonally opposite lights, forming an "X" when viewed head-on. The following steps outline the process to achieve this configuration:

1. Understanding the X-Pattern Configuration

An X-pattern setup typically involves four LED modules positioned at the corners of a vehicle's front or rear. The goal is to have diagonally opposite lights flash simultaneously, alternating with the other pair, creating a dynamic "X" effect.

2. Preparing the LED Modules

• Select Compatible Modules: Ensure all LED modules are of the same make and model to guarantee synchronization compatibility.

• Assign Groups: Divide the modules into two groups:

• Group A: Front-left and rear-right modules.

• Group B: Front-right and rear-left modules.


3. Wiring the Modules

• Power Connections: Connect each module's power and ground wires according to the manufacturer's specifications.

• Sync Wires: Most LED modules have a sync wire (often yellow or gray).

• Group A: Connect the sync wires of Group A modules together.

• Group B: Connect the sync wires of Group B modules together.

• Isolation: Ensure that the sync wires of Group A and Group B are not connected to each other.


4. Selecting Flash Patterns

• Set Identical Patterns: Before syncing, set all modules to the same flash pattern that supports synchronization.

• Pattern Selection: Use the pattern selection wire (often blue) to cycle through available patterns.

• Short Tap (1 second): Advances to the next pattern.

• Medium Hold (3 seconds): Reverses to the previous pattern.

• Long Hold (5 seconds): Resets to the default pattern.

• Verify Patterns: Ensure that all modules in both groups are set to the same pattern before proceeding.


5. Synchronizing the Modules

• Power Cycle: After setting the patterns, power cycle the modules to initiate synchronization.

• Test Synchronization: Activate the modules and observe the flash patterns:

• Group A: Modules should flash simultaneously.

• Group B: Modules should flash simultaneously, alternating with Group A.


6. Finalizing the Installation

• Secure Wiring: Once synchronization is confirmed, secure all wiring using appropriate fasteners and protective coverings to prevent damage.

• Reinstall Components: Reattach any vehicle panels or components removed during installation.


Conclusion

By following these steps, you can effectively set up and synchronize LED modules to create an X-pattern, enhancing the visibility and safety of your vehicle's lighting system. Always refer to the manufacturer's guidelines for specific wiring diagrams and safety precautions.
