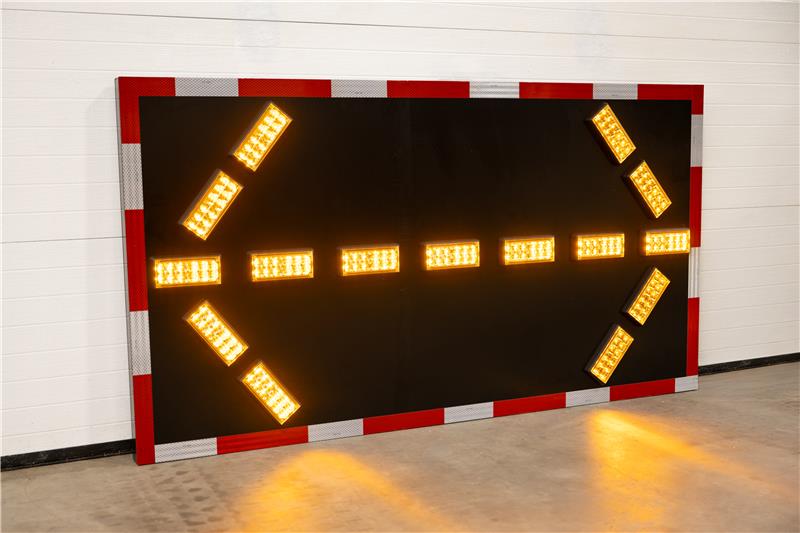

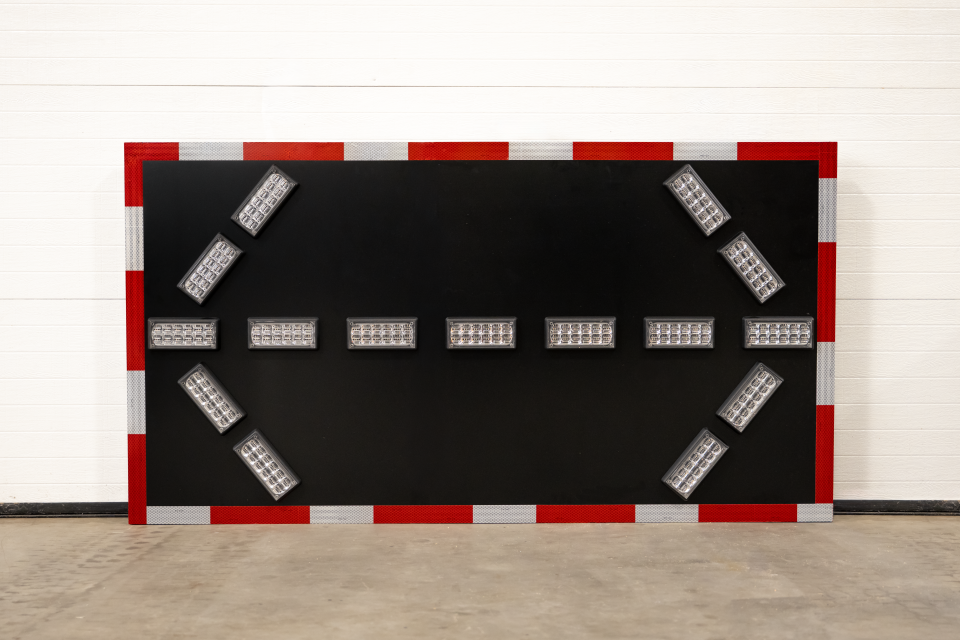

Zone Command Smart Arrow Board

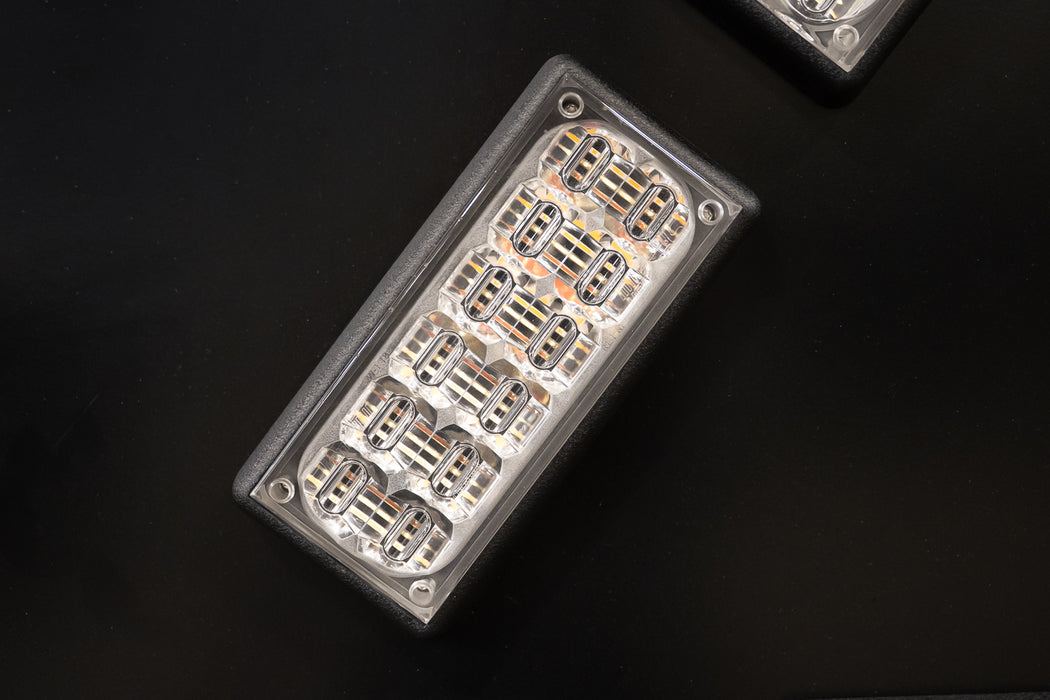

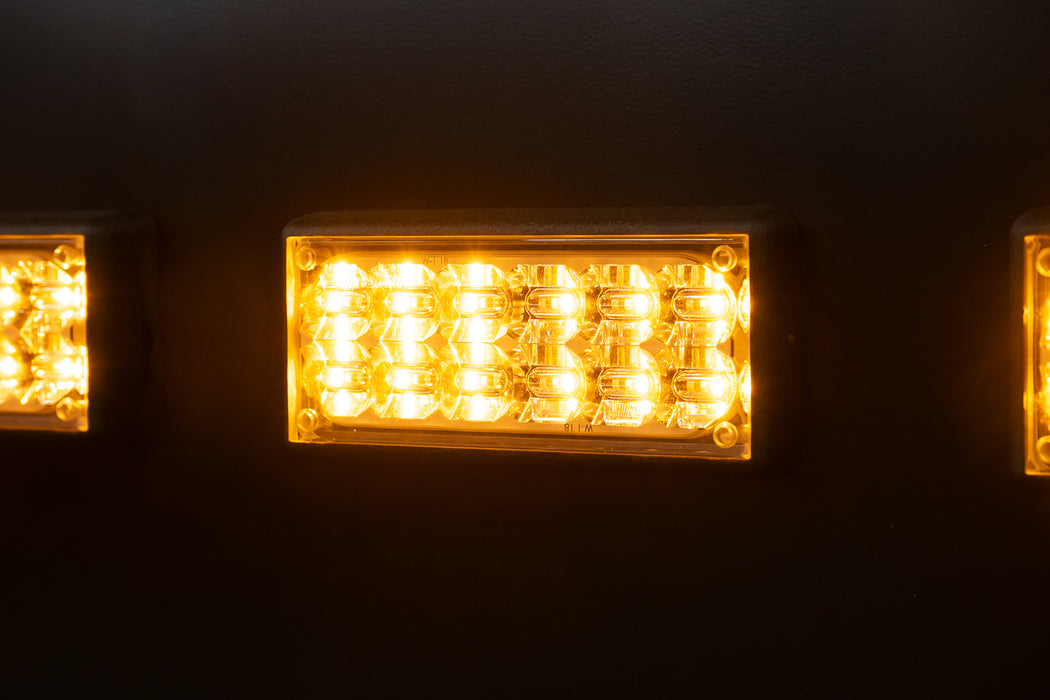

• The system is equipped with 15 mpower® 7x3 lights for tricolor configurations, delivering intense, wide-angle illumination with 180° visibility and exceptional durability thanks to its rugged silicone lenses, or 15 nFUSE® 7x3 P lights for single and dual configurations and can be powered by the bluePRINT® control system for arrow-to-arrow syncing and audible alerts.

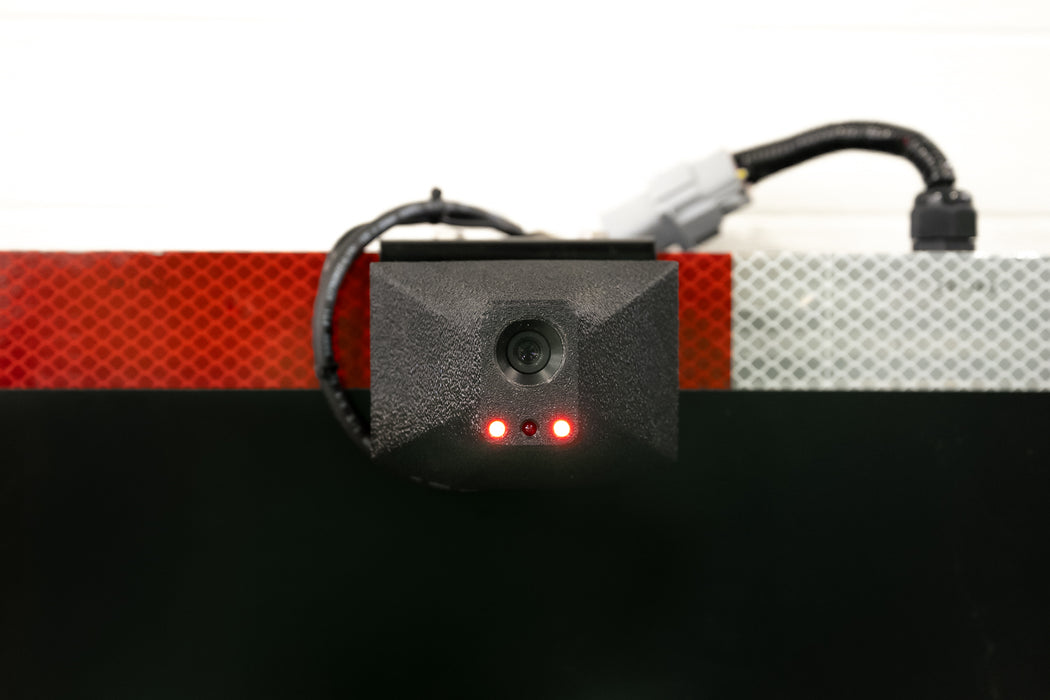

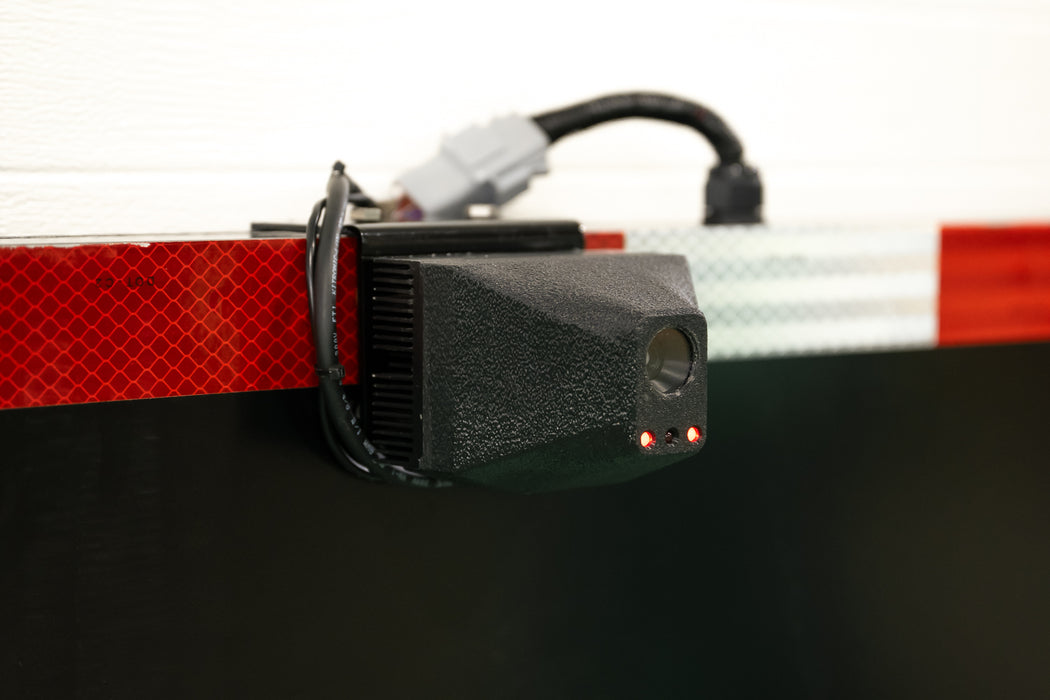

• The optional Zone Command AI Camera System utilizes artificial intelligence to identify approaching vehicles, assess their speed and calculate stopping distances. This enables the system to predict potential collisions and issue timely warnings to personnel.

• Upon the camera system detecting a vehicle on a collision course, the system can trigger visual and audible alerts, providing critical information to workers and emergency responders to take necessary precautions.

• Order as Arrow Board with bluePRINT® (allows for arrow-to-arrow sync and custom light configurations) or Arrow Board with bluePRINT® and AI Zone Command (allows for arrow-to-arrow sync, custom light configurations, audible alerts and AI Camera System components)

• Already have a board that needs an update? Our retrofit kit (ESADW0007) is available with 10 tricolor mpower® 4x2 Fascia Lights (green/amber/white). Includes arrow synchronization, power connectors, Zone Command and interface module with 8 detection inputs with bluePRINT® 200 Siren and 100J Speaker

• Operating Temperature: -40-149 F

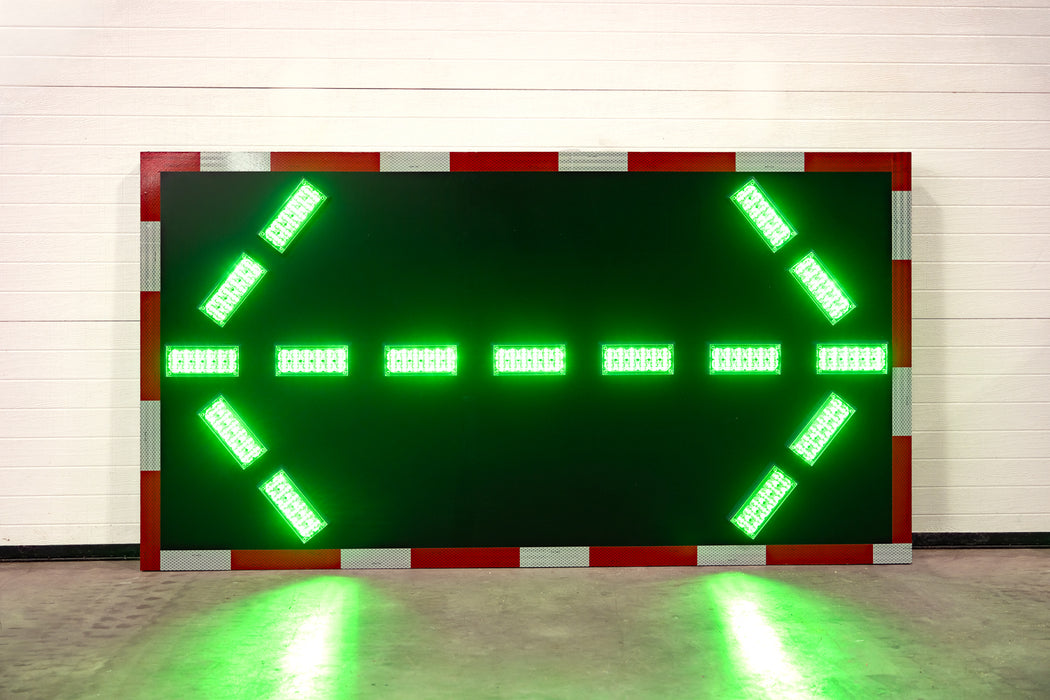

• LED Color Capabilities: Single, dual, tricolor

• LED Color Options: Red, Amber, Green

• Dimensions: 78” x 42”

• Current Draw: 28.5 amps peak

• Operating Voltage: 10-16 Vdc

• Total Switching Current: Max 100 amp

• Certifications*: MUTCD Compliant and Approved by the Florida Standard Compliant APL# 102-085-003

• 78" Smart Arrow Board Tri-Color x 15 (Amber/Green/Red mpower® 7x3). Turn-Key solution-shipped complete. Arrow Synchronization included. Power Connectors included. (customer supplied cables) - with ZoneCommand - Intrusion Detection Camera System. Includes interface module with 8 detection inputs.

• 78" Smart Arrow Board, Dual Color x 15 (Amber/Red Poly 7x3). Turn-Key solution-shipped complete. Arrow Synchronization included. Power Connectors included. (customer supplied cables) - with ZoneCommand - Intrusion Detection Camera System. Includes interface module with 8 detection inputs.

• 78" Smart Arrow Board, Single Color (Amber Poly 7x3). Turn-Key solution-shipped complete. Arrow Synchronization included. Power Connectors included. (customer supplied cables) - with ZoneCommand - Intrusion Detection Camera System. Includes interface module with 8 detection

• 78" Smart Arrow Board, Tri-Color x 15 (Amber/Green/Red mpower® 7x3). Turn-Key solution-shipped complete. Arrow Synchronization included. Power Connectors included. (customer supplied cables)

• 78" Smart Arrow board, Dual Color x 15 (Amber/Red Poly 7x3). Turn-Key solution-shipped complete. Arrow Synchronization included. Power Connectors included. (customer supplied cables)

• 78" Smart Arrow Board, Single Color (Amber Poly 7x3). Turn-Key solution-shipped complete. Arrow Synchronization included. Power Connectors included. (customer supplied cables)
