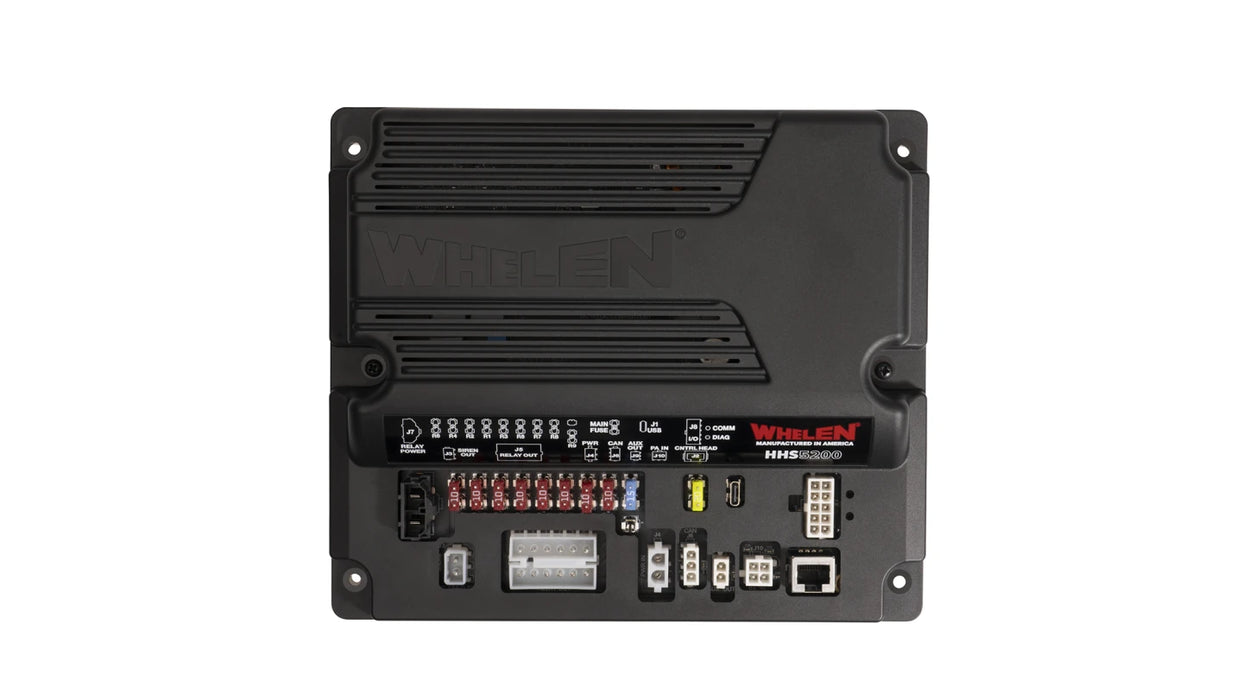

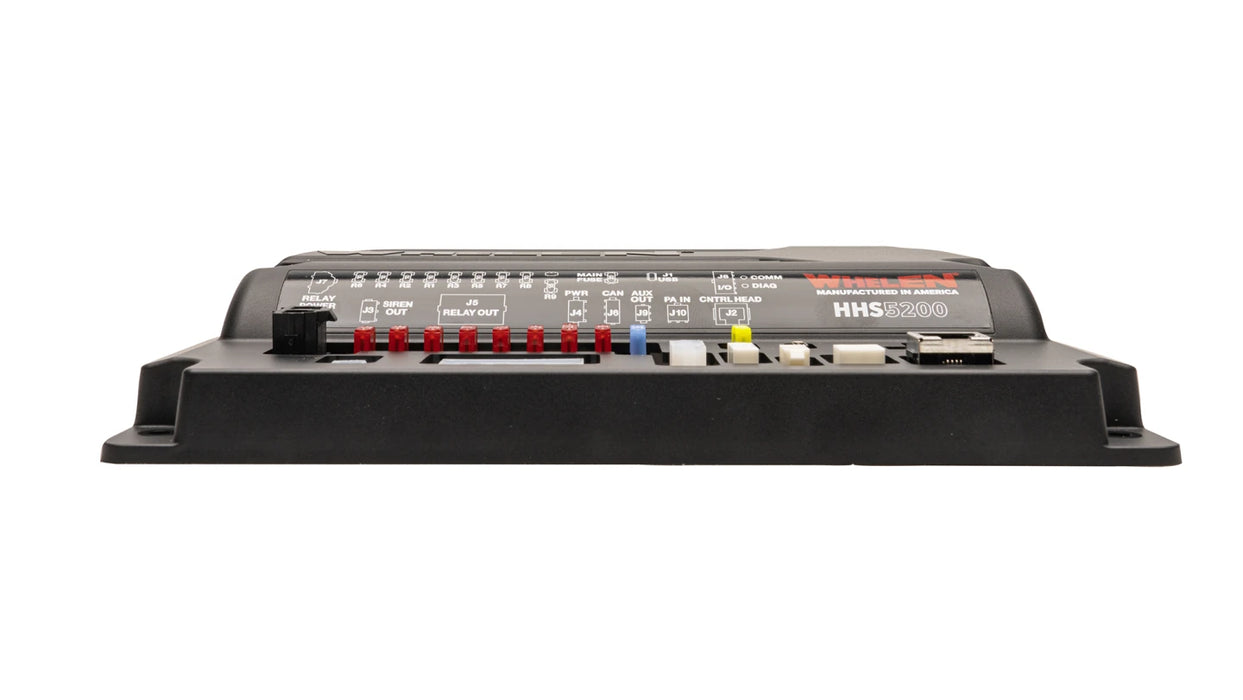

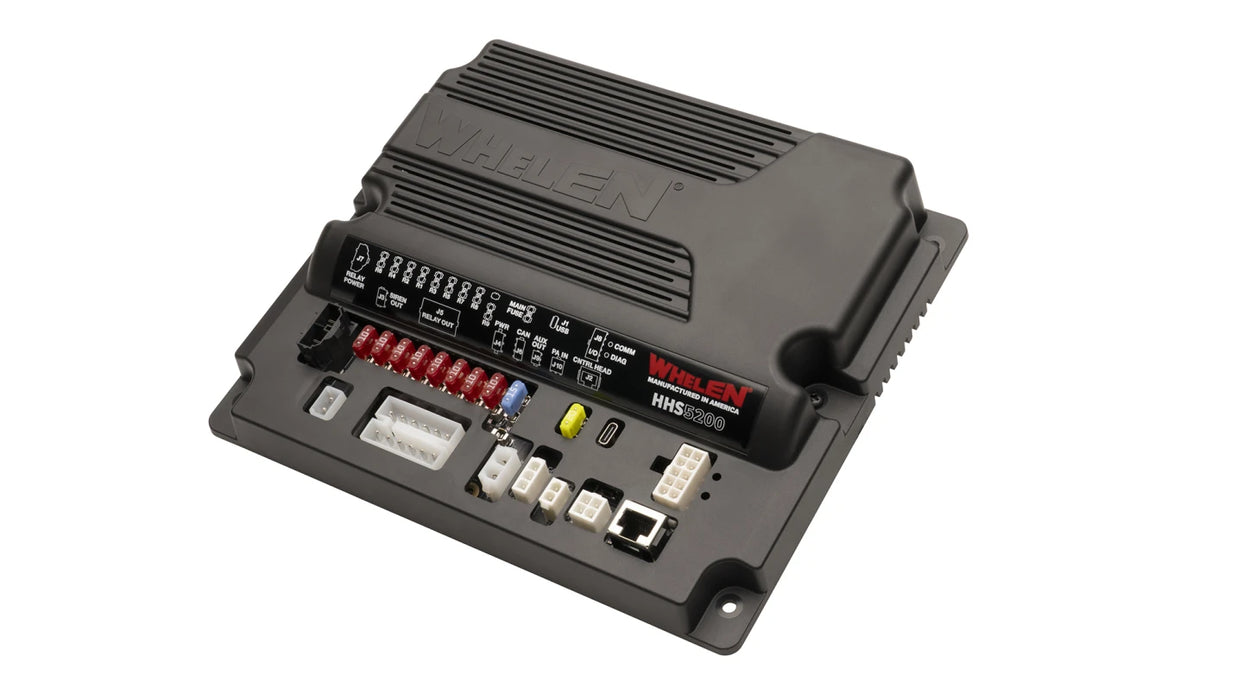

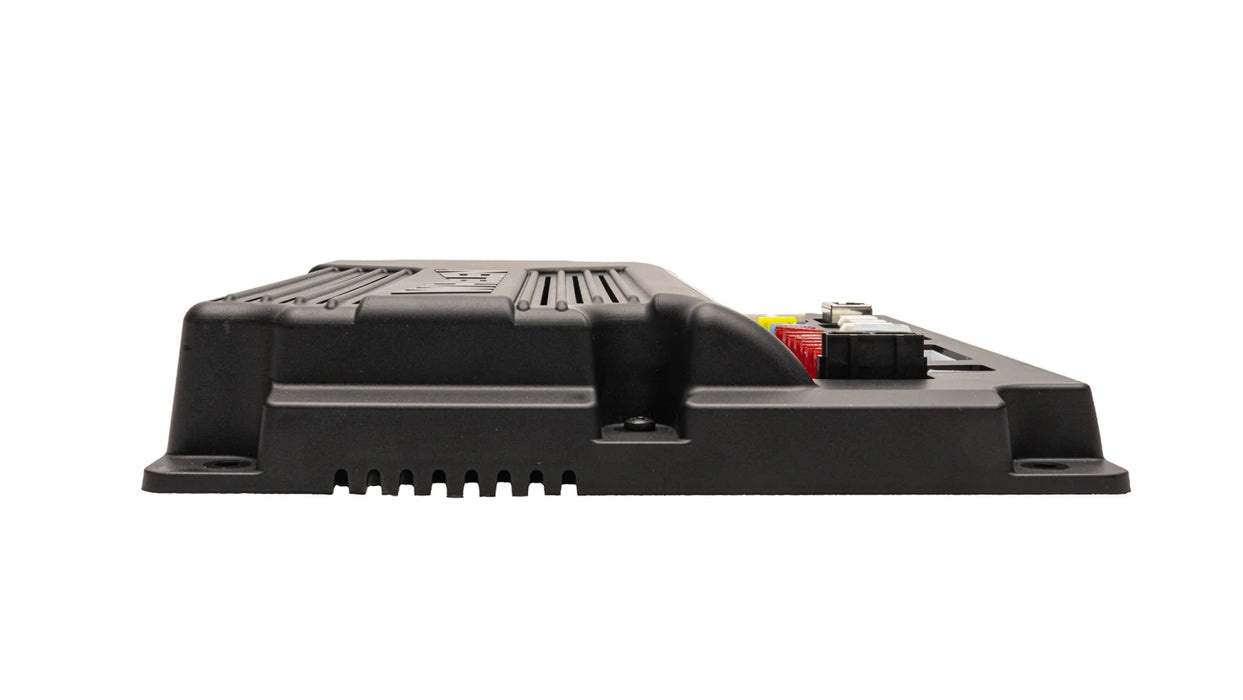

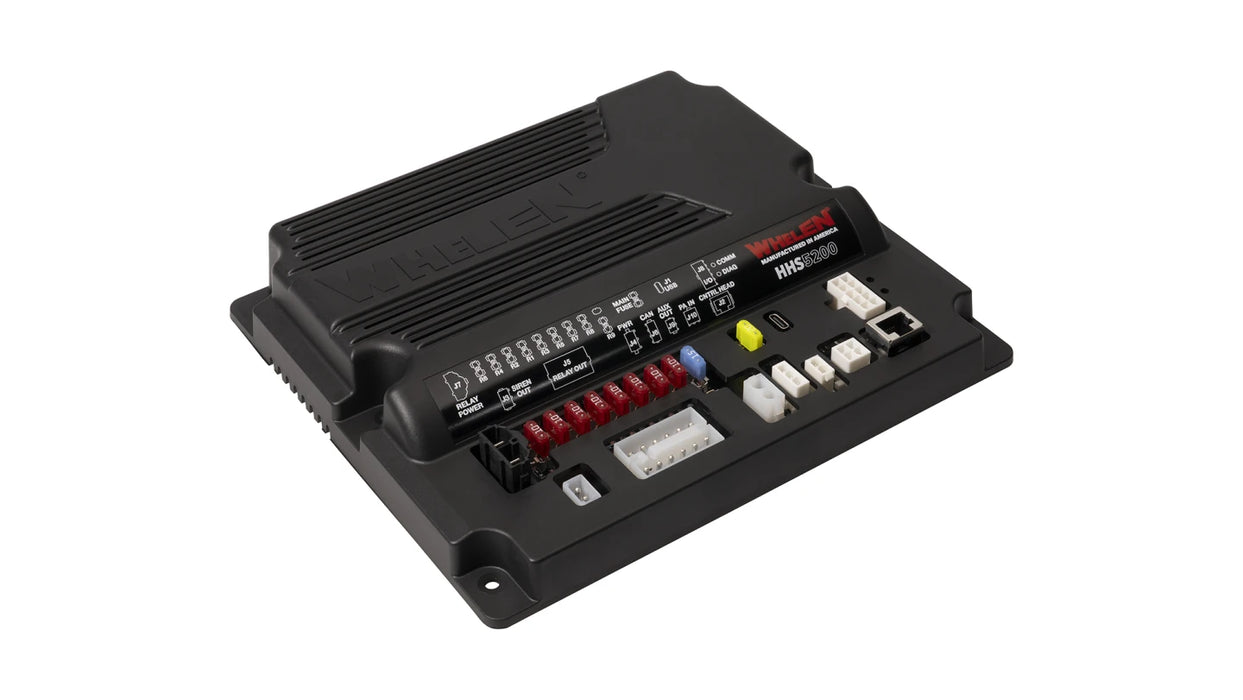

Whelen Vehicle Control System HHS5200

*This is a Special Order item.

Note: This item is currently not in stock, and we do not have an estimated availability date at this time.

The HHS5200 delivers enhanced performance, expanded voltage capability, and seamless integration with our WeCanX® ecosystem. Built for demanding emergency environments, this siren amplifier provides dependable control, improved efficiency, and the flexibility today’s fleets require.

Features:

• WeCanX Integration: Fully compatible with WeCanX for streamlined system communication and control
• Core® Control Head Compatibility: Works with any Whelen Core control head, giving users flexibility without being locked into a single interface
• New Class D Amplifier: Improved efficiency and performance with a next-generation siren driver for reliable, high-output sound
• Wide Voltage Range (10–30 VDC): First Whelen siren to support this range, making it ideal for a broader range of vehicle platforms
• Low-Profile Housing: Compact, space-saving design for easier installation in tight vehicle interiors
• Digital Voice Messaging (DVM): Programmable DVMs notify the public of evacuation orders, provide instructions during traffic stops, issue warnings at active scenes, and much more
• V2V Sync Capability: Automatically synchronize WeCanX lights and sirens on vehicles within proximity for a unified warning presence

Specifications:

• Included: 200 Watt Siren Amplifier
• Temperature:
  • Operating Temperature: -30°C to 60°C
  • Storage Temperature: -40°C to 70°C
  • Humidity: 99% (Non-Condensing)
•  Input/Output:
  • Siren Input Current: 20 amps max
  • Siren Input Fuse: 20 amps
  • (8) 10-amp relay outputs and (1) 15-amp relay output
• Standby Current (Backlight Off): <1 mA
• Compatible Control Heads: CCTL5, CCTL6, CCTL7, CCTL8, CCTL8LM, CCTL9, CCTL9LM, CCTL10, CCTL11, CCTL11LM - Note: HHS5200 limited to one control head
• Compatible Devices:
  • One (1) WeCanX FST or WeCanX XLP Inner Edge
  • One (1) WeCanX RST Inner Edge
  • One (1) WeCanX lightbar (including lightbar expansion I/O, as required)
  • One (1) WeCanX external siren amplifier or one (1) WeCanX external Howler amplifier
  • One (1) WeCanX primary control head and
  • Two (2) Arges spotlights
  • One (1) Arges control head
  • One (1) V2V Synchronization Module
• Tones: Supports entire Whelen Command library of tones
• Certifications:
  • SAE Standards: SAE J1849
  • Emergency Vehicle Standards: KKK-A-1822F
  • Regulatory Compliance: CA Title 13, Conforms to CISPR 25
  • Certifications applicable when paired with one Whelen 100-watt speaker
• Warranty: 5-year
• Voltage: 10-30 VDC
• Size:
  • Width: 9” (22.86cm)
  • Height: 7.75” (19.69cm)
  • Depth: 1.5” (3.81cm)
• Software: Program via Whelen Command®
