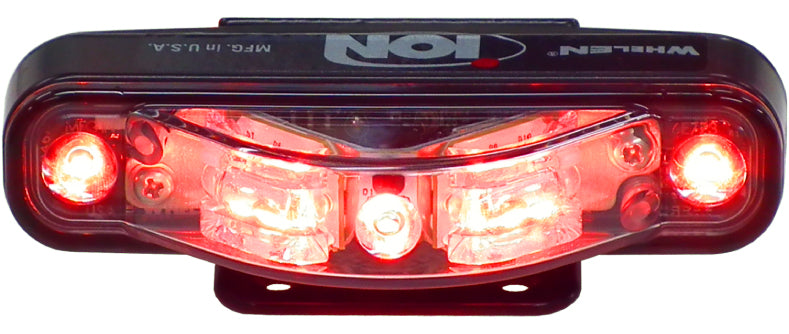

Whelen ION V-Series Super-LED Universal Light with TIR Warning - Single Color
Description

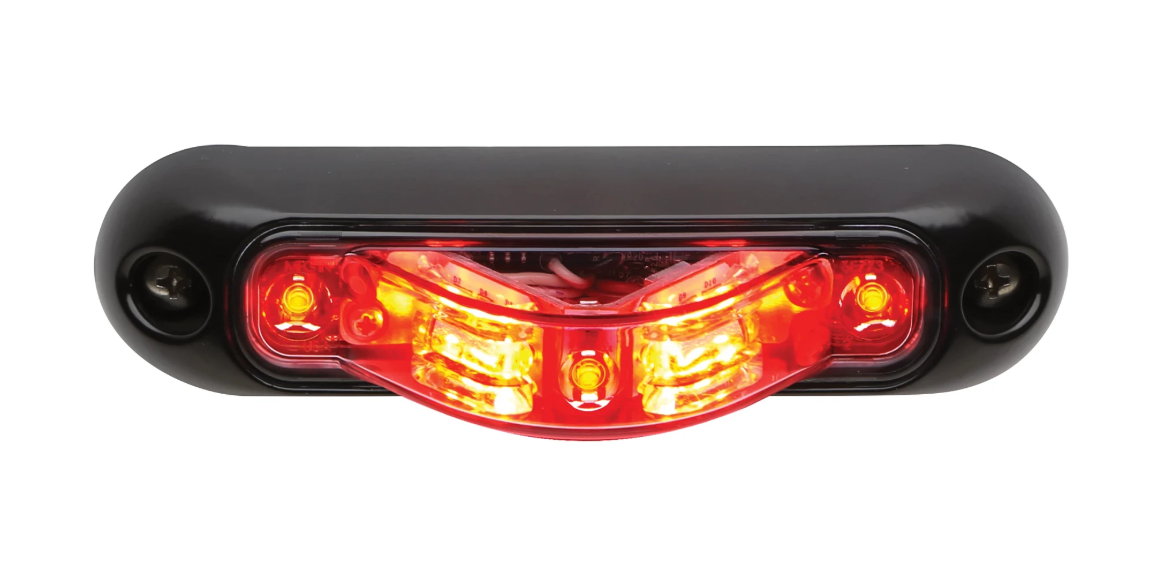

The ION® V-Series lighthead is designed to provide three-in-one lighting that combines warning, flood, and puddle light capabilities in a single, compact unit. Engineered to deliver multiple planes of light from one lighthead, it ensures enhanced visibility from all angles. Available in both three-in-one combination and single-color models, the ION V-Series adapts to meet the unique needs of fire, law enforcement, EMS, and commercial vehicles. Its compact design and versatile mounting options make it easy to install on various parts of a vehicle, including grilles, side mirrors, and push bumpers. Built for durability, the ION V-Series offers bright, reliable lighting that improves safety and efficiency in critical situations, whether on the road or at the scene.
Features:
- Innovative V-Shaped Optics: Provides multiple planes of light for comprehensive coverage from every angle
- Multi-Function Solution: 3-in-1 design combines Warning, Alley, and Puddle lights in a single compact unit for versatile performance
- Wide-Angle Coverage: Single-Color models pair 180° illumination with TIR™ optics for superior directional warning in emergency and utility applications
Technology:
- SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
- Steady-Lock™: Automatically set flash pattern to Steady when paired with a Core® system
- Scan-Lock™: Advanced flash pattern control
- Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
Specifications:
- Optics: Combination TIR™ Alley Optics with Linear Warning
- Flash Patterns: 33 Scan-Lock™ flash patterns
- Control: SmartLED®
- Included Cables & Hardware: 22 AWG 12" (30.48 cm) Pigtail
- Voltage: 12 VDC
- Amps: Combination models - Warning, Flood, and Puddle: 0.89 (peak), 0.57 (avg.)
- Dimensions: Width: 4.09" (10.39 cm), Height: 1.04" (2.64 cm), Depth: 2.19" (5.56 cm)
- Warranty: 10-year
Certifications:
- SAE Standards: SAE Class 1, SAE J595 and SAE J845
- Emergency Vehicle Standards: KKK-A-1822F Contributor
- Regulatory Compliance: CA Title XIII, R10 and R65
