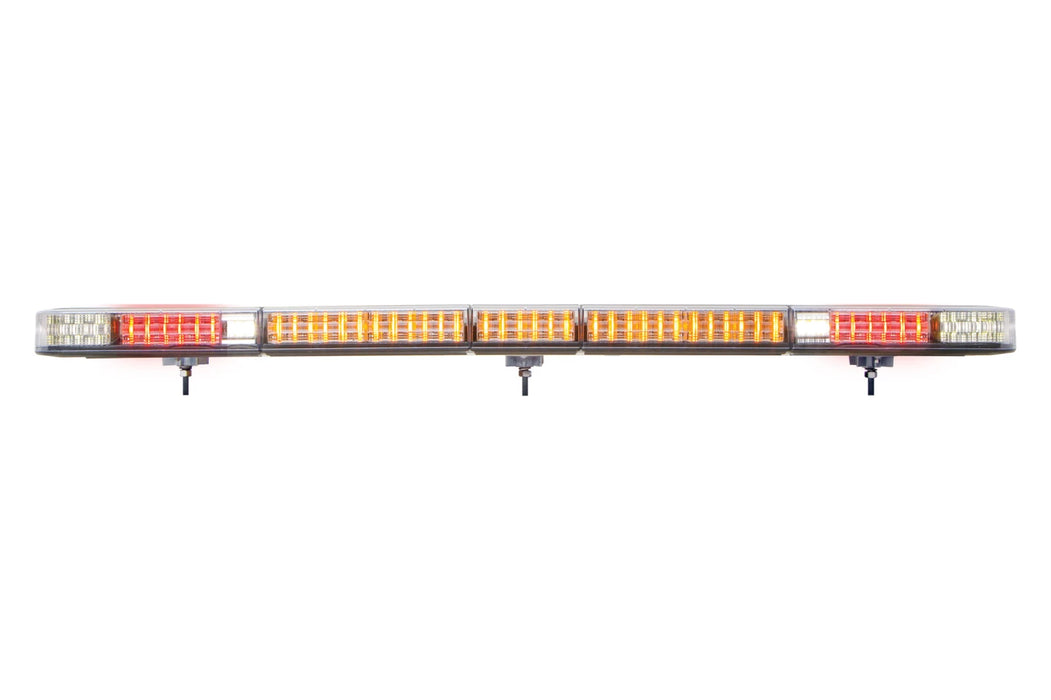

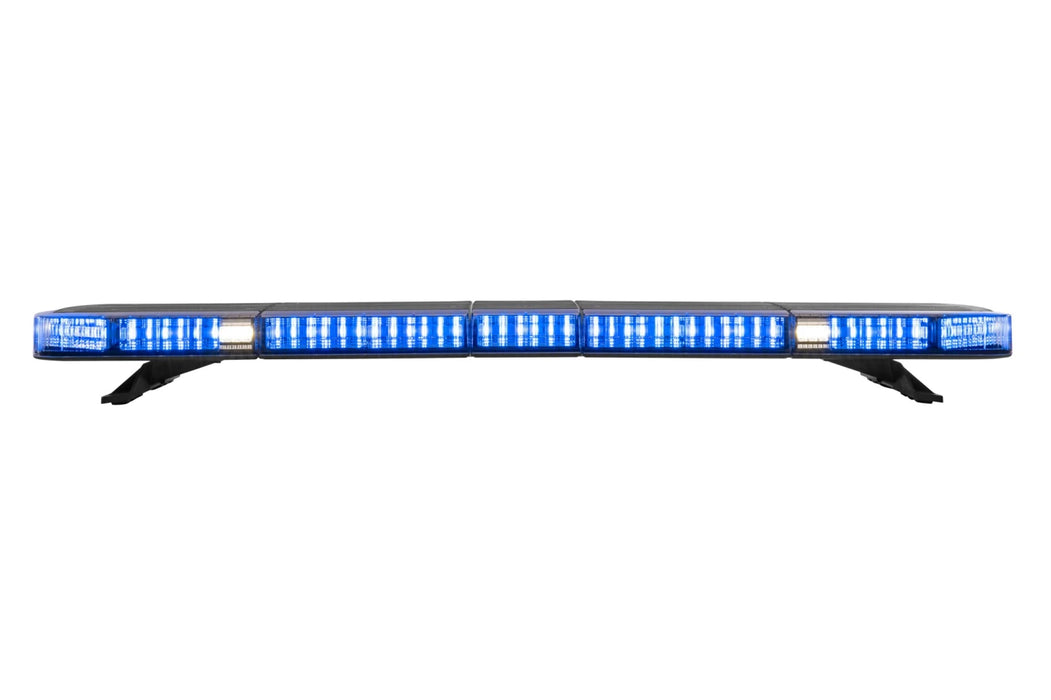

Whelen Edge® 9X Series Lightbar Core-C and Core-R Package

*This is a Special Order item.

The Edge® 9X lightbar combines powerful performance with customizable options, making it a versatile solution for various vehicles. This modern design pays homage to our Edge 9000, an industry favorite that gained popularity in the 1980s for its reliability and innovative features. The Edge 9X continues that tradition of innovation and is equipped with our advanced Super-LED® technology, providing exceptional long-range visibility and superior warning power essential for law enforcement, fire, and emergency response vehicles. Built for the most demanding environments, the Edge 9X offers premium lighting that balances quality and value, making it competitively priced for any fleet. Its customizable features allow for tailored configurations, ensuring that it meets the specific needs of emergency responders while enhancing visibility and overall safety. WeCanX® technology allows for seamless integration with Whelen’s cloud-based lighting control system, giving users advanced control of their lightbar settings. With options available in both short and tall profiles, the Edge 9X caters to various applications and vehicle types, such as police cruisers and fire rescue trucks.

Features:

• Two main sizes, 48” or 54”
• Cost Effective: Designed to deliver exceptional value
• Customizable Design: Tailor your lightbar to your exact needs using WeCad lightbar designer
• Built for Durability: Features molded polycarbonate Black top that repel hail and other environmental damages
• Customizable Lengths: Available in 9 sizes, ranging from 25" to 70", to fit your specific needs
• Profile Options: Choose between short (9XS) and tall (9XT) profiles to suit your application
• Customizable Tops: Comes standard with a Black molded polycarbonate top, with optional upgrades to Amber, Blue, or Red for enhanced aesthetics and aerial recognition
• Towman’s™ Edge 9x Series: Designed to meet the specific demands of the towing industry

Specifications:

• Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety
• Flash Patterns: Models are programmable with unlimited flash patterns, via Command®
• Control: WeCanX®
• Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
• Advanced Thermal Design: Reduces LED stress during extended use
• Molded Polycarbonate Top (Black): repels hail and environmental damages
• Mounting: Roof-Mounted: Extended adjustable mounting feet and passenger side cable exit
• Included Cables & Hardware: 14' (4.28 m) cable
• Warranty: I/O Board: 10-year, Lightheads: 5-year
• Voltage: 12/24 VDC
• Available Lengths: 48" (121.92 cm), 54" (137.16 cm)
• Height (9XS): 1.88" (4.78 cm)
• Height (9XT): 2.73" (6.93 cm)
• Width: 11.52" (29.26 cm)
• Certifications: SAE Class 1, CA Title 13 ,R10, R65

WeCanX® Control Heads Descriptions:

• CCTL5: Includes Hand Held Combination Microphone and Controller, 5-Position Progressive Light/Siren Control, 9 Push-Buttons and a Microphone Extension Cable
• CCTL6: Includes 3 Section Control Head and 8 Push-Buttons, 4-Position Slide Switch with a 7-Position Rotary Knob. Manual, Airhorn Plus 3 Traffic Advisor™ Switches and Microphone with Extension Cable
• CCTL7: Includes 3 Section Control Head and 21 Push-Buttons, 4-Position Slide Switch, Microphone with Extension Cable

CANport™ Install Kits Vehicle Descriptions:

• C399RSP: SCANPort Installation Kit for C399R and C399S, See Vehicle Outfitter for available vehicle Make/Model/Year (Not for use with Core C399) Available for Ford Super Duty 2023-2024, Chevrolet Silverado 1500 PPV 2022-2024, Ford Transit 2023-2024, Chevrolet Blazer EV 2023-2024, Chevrolet Tahoe 2024
• C399RK1: NEW OBDII CanPort™ Installation Kit for C399R Only, for 2016-2019 Ford Interceptor Utility, 2020-2021 Ford Interceptor Utility used with Factory Option 61B, 2016-2020 Ford F-150, 2018-2022 Ford, F-250/350, 2018-2019 450/550, Expedition and Transit 150/250/350, 2017-2019 Ford Fusion (All Models), 2020 Ford Fusion Hybrid and 2016-2017 Dodge Charger
• C399RK2: NEW OBDII CANPort™ Installation Kit for C399R Only, for Chevy, 2017-2020 Tahoe, 2017-2018 Silverado 1500, 2019-2021 Silverado 1500 (Body Style), 2017-2019 Silverado 2500/3500, 2019-2021 Colorado 1500, 2019 Impala, 2018-2020 Suburban
• C399RK3: NEW OBDII CANPort™ Installation Kit for C399R Only, for 2018-2020 Ram Classic 1500, 2019-2020 Ram 1500, and 2018-2020 Dodge Charger and Durango
• C399RK4: NEW 2020 Ford Interceptor Utility Gateway Installation Kit for C399R Only, for use WITHOUT Ford 61B Factory Option
• C399RK5: NEW 2020-2022 Ford Expedition, Super Duty and Transit Gateway Installation Kit for C399R Only
• C399RK6: NEW 2021 Chevy Tahoe and Suburban Installation Kit, for C399R Only
• C399RK7: NEW 2021 Ford F-150 and 2021 Ford Mustang Mach-E Installation Kit for C399R Only
• C399RK8: NEW 2021-2022 Tesla Model Y Installation Kit for C399R Only
• C399RK9: NEW 2022 Chevy Silverado PPV/LTD, 2022 Chevy Colorado Installation Kit for C399R Only
