Premium Package – Raised Fold-Up Equipment Tray & Cargo Plate with 200 lbs Lift Struts for 2020-2025 Ford Interceptor Utility
by Havis
Original price
$1,981.00
Original price
$1,981.00
-
Original price
$1,981.00
Original price
$1,981.00
Current price
$1,485.75
$1,485.75
-
$1,485.75
Current price
$1,485.75
SKU PKG-TTP-INUT-1201-4
Description
Features:

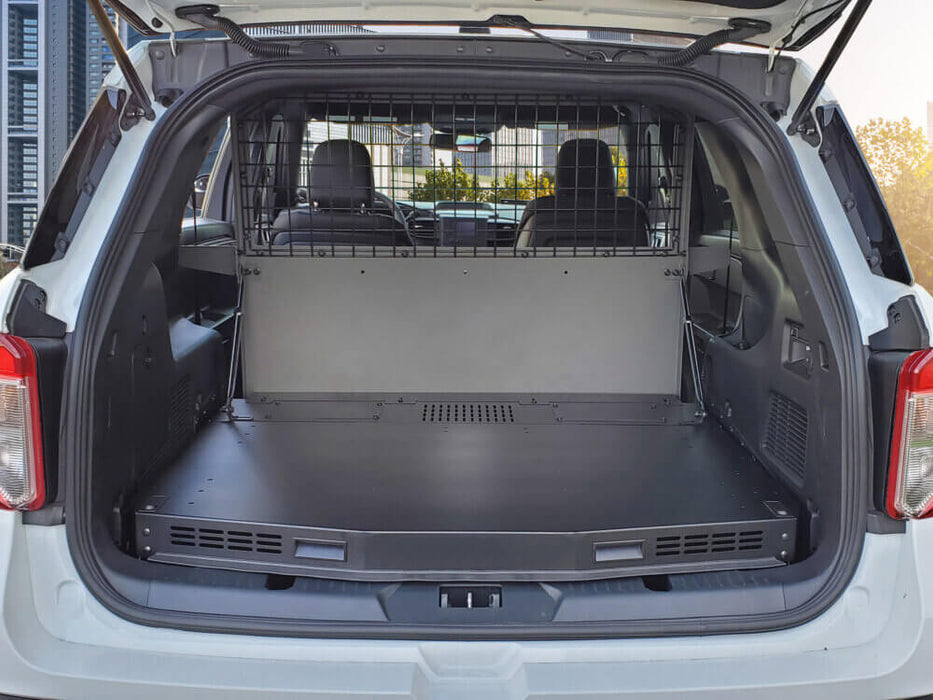

- Premium fold-up raised cargo plate & equipment tray fits 2020+ Ford Interceptor Utility
- Replaces OEM rear cargo floor/ spare tire cover and attaches without drilling
- Dual lockable latches provide quick access or protection of equipment mounted beneath
- Includes two (2) 200 lbs. gas lift struts, best for mounting storage or heavy equipment
- Equipment can be mounted on premium fold-up tray included, attaches to the underside of raised cargo plate above spare tire
- Allows access to spare tire
- Dual prop rods can be used to support mounting plate in open position
- Works with Havis Standard-length K9-F28-1, K9-F28-1-B, extended-length K9-F28-XL, K9-F28-XL-B or K9-F28-PT, K9-F28-PT-B inserts
- Only use Havis standard width SBX-1000 Series drawers
- Installer must drill and Bolt on equipment as desired
- Two (2) panels provide access to siren/radios and other equipment mounted in factory location under floor
- Ships motor freight
- Mounts to Interceptor Utility OE X-brace. does not work with retail Ford Explorer
- Cargo plate includes hole pattern for mounting Havis, inc. storage drawers
- Includes hole pattern and hardware to mount Havis SBX-1000 Series 40” wide modular storage drawers (If using two storage drawers they must be medium size)
- For vehicles with option 63V cargo storage vault, flush-mount locking latch kit (C-HK-364) is recommended to allow Havis trunk tray to open fully
Specifications:
- Recommended for over 60 lbs of mounted equipment
- 80 lbs maximum weight rating for equipment that is bolted to the underside of platform (weight evenly distributed)
- 400 lbs weight carrying capacity for cargo stored on top of the platform when closed (will not hold 400 lbs. in open position)
- Cargo plate measures - 46.5" wide x 31.2" deep (front to back)
- Equipment mounting tray surface = 39.2" wide x 27.2" long
- Depth between top of tray and bottom of raised cargo plate = 6" (5" under raised cargo plate reinforcement panel)
- Includes two (2) spring latches to attach tray to raised cargo plate
- Forward trim panel measures - 40" wide x 4.7: deep (front to back)
- Forward trim panel adjusts to fit against Havis K9, or some manufacturers' partitions
- 14-gauge formed steel with a black medium texture powder coat finish
- Accepts SBX-4004 fan
- For use with Pro-gard rear partition, please order PROKIT-2 partition support strut relocation kit, adjustable forward filler panel works with some other manufacturers' rear partitions
- For use with Setina partition, please order C-TTP-INUT-SETINA (sold separately) filler panel to close gap between Havis cargo plate and Setina partition
- Gross weight: 120 lbs
Informational Video
Installation Instructions (PDF)

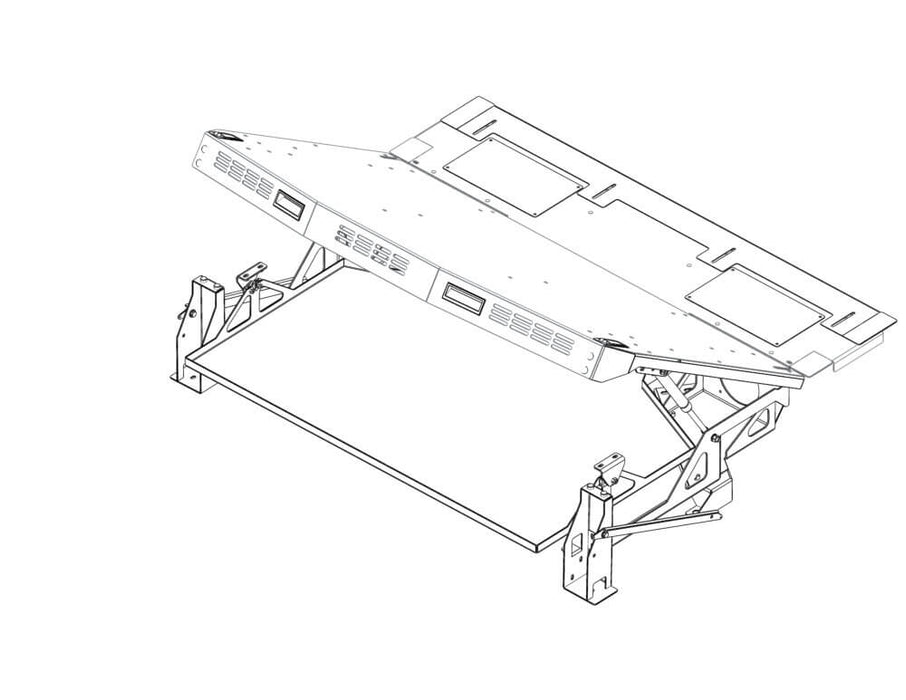

Isoview Drawing (JPG)

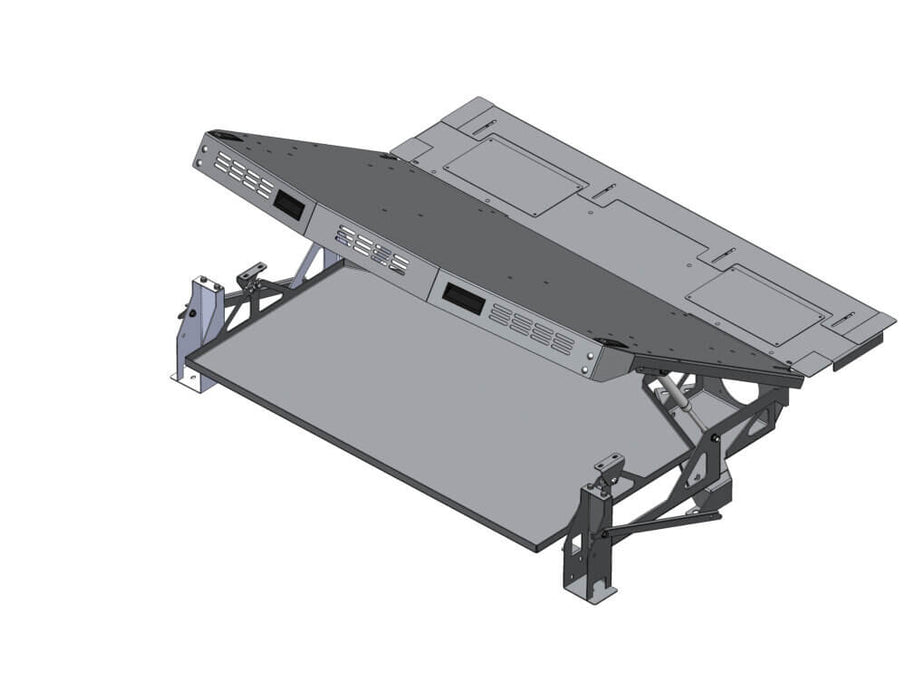

3D Rendering (JPG)
Side View Depth Measurements (JPG)
