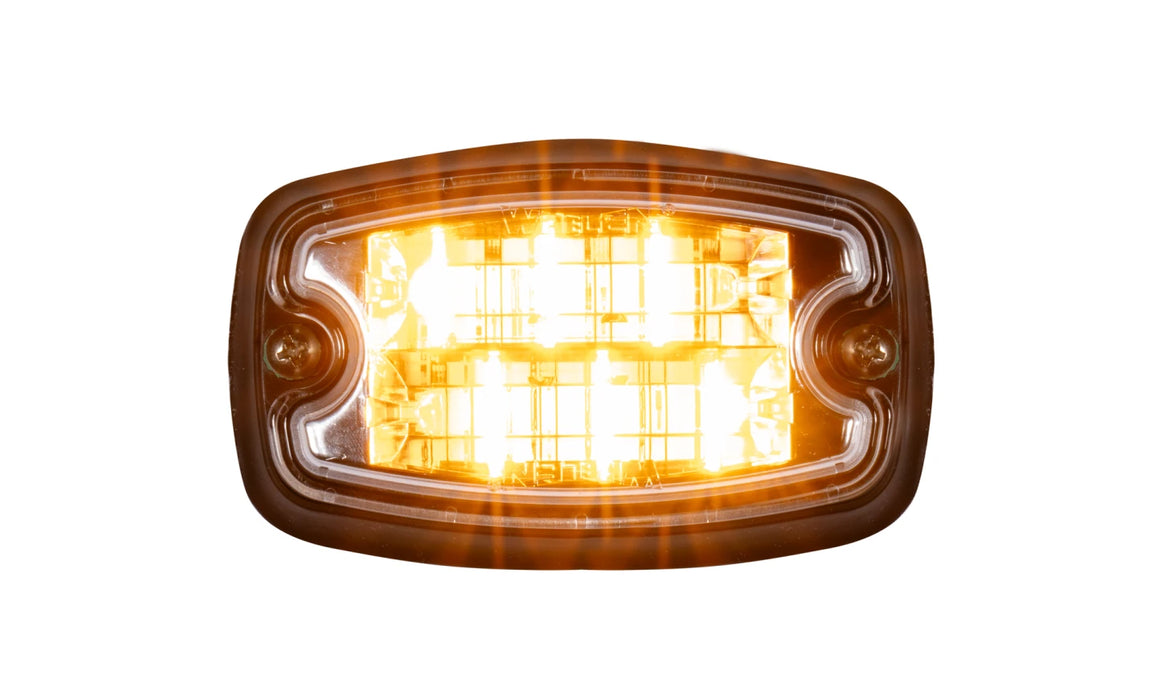

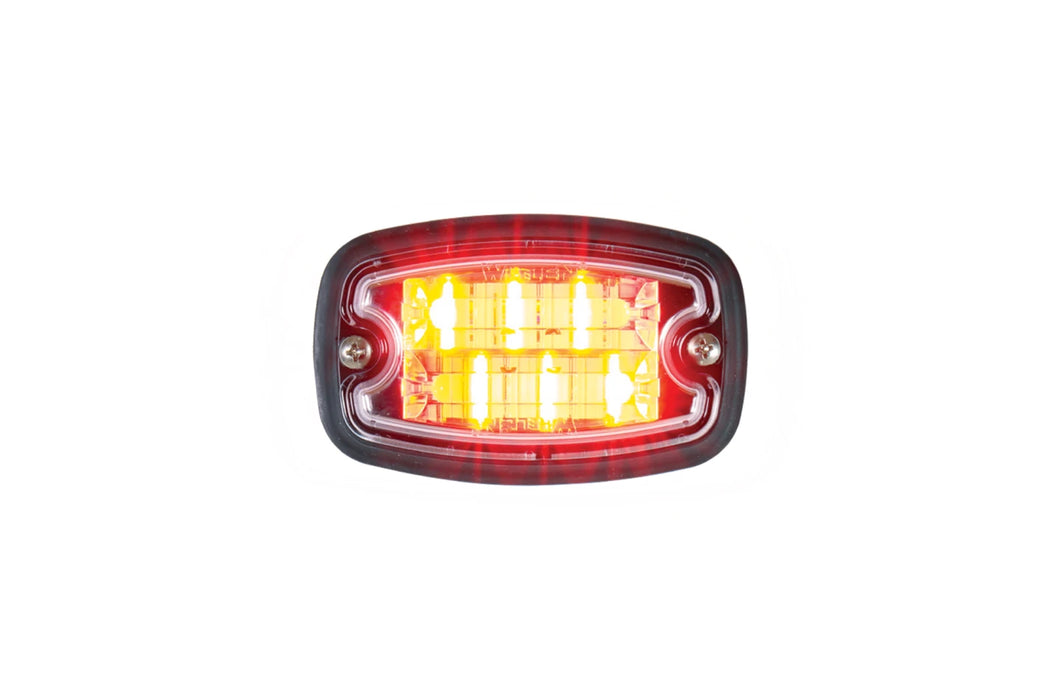

M2 Linear Series Super-LED® SOLO Surface Mount

The M2 lighthead delivers high-intensity lighting in a compact design, making it ideal for fire, EMS, law enforcement, and utility vehicles. Part of our popular M Series®, the M2 features Linear Super-LED® technology and ensures bright, consistent warning illumination in critical situations. Its low-profile, rounded rectangular shape allows for versatile mounting options, making it ideal for a variety of vehicle surfaces where space is limited. Available in single- or dual-color models, the M2 offers flexibility for primary warning or scene lighting. Built with hard-coated, impact-resistant polycarbonate lenses, it stands up to harsh elements like sand, sun, salt, and road chemicals. Engineered for durability and reliability, the M2 is a top choice for fleets that need dependable lighting solutions in demanding environments.

Features:

• Compact, Powerful Design: Sleek design combines efficiency with space-saving performance
• Advanced Optics: Unique lens shape and patented Linear-LED® designed reflector assembly
• Unmatched Performance: Delivers high-intensity warning with energy-efficient low current consumption
• Cutting-Edge Technology: Designed with industry-leading Whelen technology for optimal performance and reliability
• SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies
• Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety
• E Block™: Patented watertight seal prevents moisture from entering the lighthead
• Steady-Lock™ : Automatically set flash pattern to Steady when paired with a Core® system
• Scan-Lock™: Advanced flash pattern control
• Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns
• Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
• Conformal Coated Electronics: Environmental, moisture, and vibration resistance

Specifications:

• Linear Super-LED®: SOLO™ and DUO™ models available
• Flash Patterns: 25 Scan-Lock flash patterns
• Control: SmartLED
• Lenses: Clear, Color, or Smoked
• Optional Additions: Black or Chrome Flange, Grommet Mount Kit or Pedestal Mount Kit
• Mounting: Surface
• Included Cables & Hardware: 18 AWG 12" (30.48 cm) Pigtail
• Warranty: 10-year
• Voltage: 12/24 VDC
• Amps: 1.11 (peak), 0.39 (avg.)
• Width: 3.65” (9.27 cm)
• Height: 2.07” (5.26 cm)
• Depth: 0.92” (2.33 cm)
• Certifications:
  • SAE Standards: SAE Class 1, SAE J595, SAE J845
  • Emergency Vehicle Standards: NFPA 1900, KKK-A-1822F
  • Environmental: IP67
  • Regulatory Compliance: CA Title 13, R10, R65
