Feniex 20X Controller

*This is a Special Order item.

*Note: this controller is not programmable.

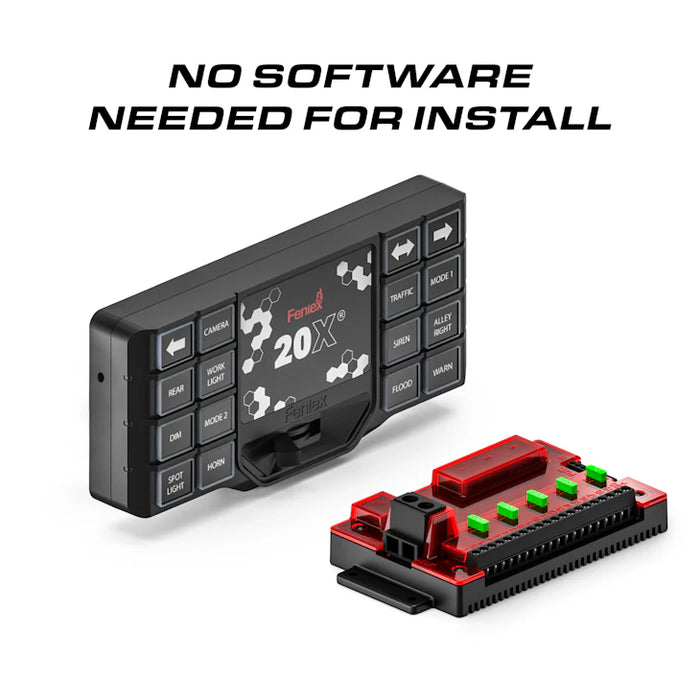

Compact, powerful, and purpose-built—the Feniex 20X Controller is the ultimate solution for simple and reliable control in demanding vehicle environments. With no software required, the 20X is engineered for ease of use with direct wiring and an optimized button layout for intuitive operation. Designed with 20 channel outputs, it delivers efficient power distribution in a durable, low-profile housing. Its built-in LED health indicator offers real-time system feedback, while protected terminal sections help prevent accidental shorting during installation or maintenance.

Engineered for maximum versatility, the 20X includes 2 low-side and 3 high-side trigger inputs, a 2-channel wig-wag function, and an integrated slide switch, providing flexible control for a wide range of emergency lighting and equipment setups. Solid-state relays ensure faster response times, increased durability, and quieter operation compared to traditional relay systems. The 20X is compatible with most emergency lights and fits seamlessly into existing builds with a 15-foot cable for easy routing.

Install-ready and field-tested, the 20X Controller includes optional faceplates for Troy, Havis, and Jotto consoles and is designed to handle real-world conditions with confidence. Backed by a 2-year warranty, it's the go-to controller for fleets, upfitters, and emergency response teams who demand reliability without complexity.

Features:

• No software required
• 2 Channel Wig Wag
• Solid State Relays
• 2 Low-side Inputs
• 3 High-side Inputs
• Protected Terminal Sections to prevent shorting
• Faceplate available for Troy, Havis, and Jotto
• Compatible with most emergency lights
• Integrated Slide Switch
• Built-in LED Good Health Indicator
• Built-in Day and Night mode
• Built-in Highbeam Override

Specifications:

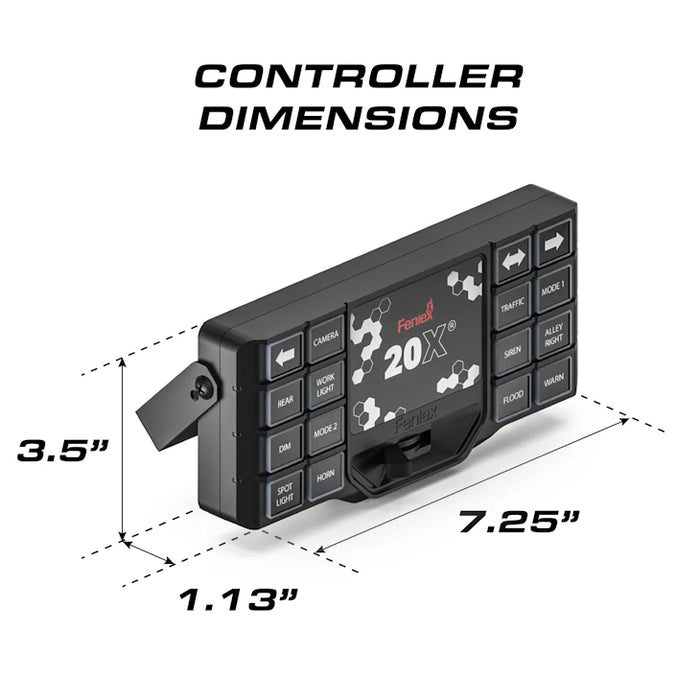

• Controller Dim: 7.25” x 1.13” x 3.5”
• Relay Dim: 6.3” x 4.4” x 1.6”
• Input Voltage: 11-16VDC
• Current Draw: 100mA
• Amps per Output: 3 Amps @ 13V
• External Fuse: 125% Circuit Load
• Cable Length: 15ft
• 2 Year Manufacturer Warranty
