Federal Signal Micropulse Ultra D-Pillar Light Promo

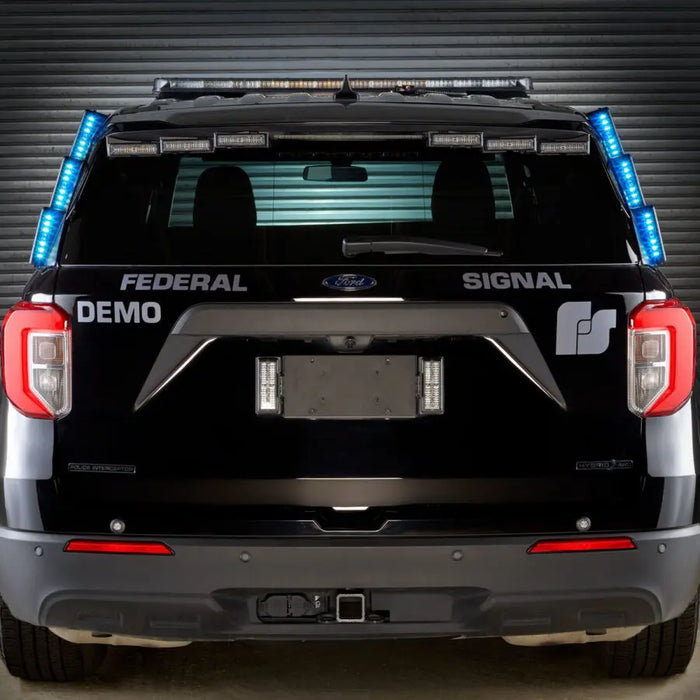

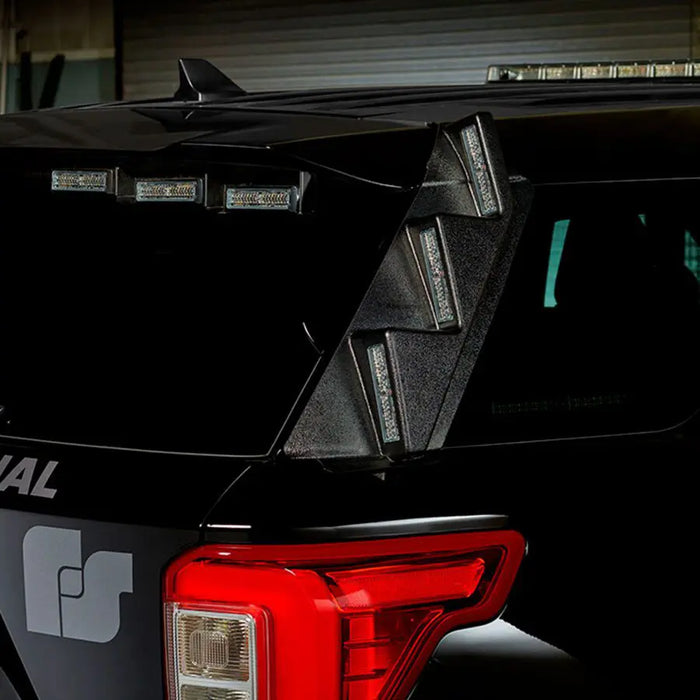

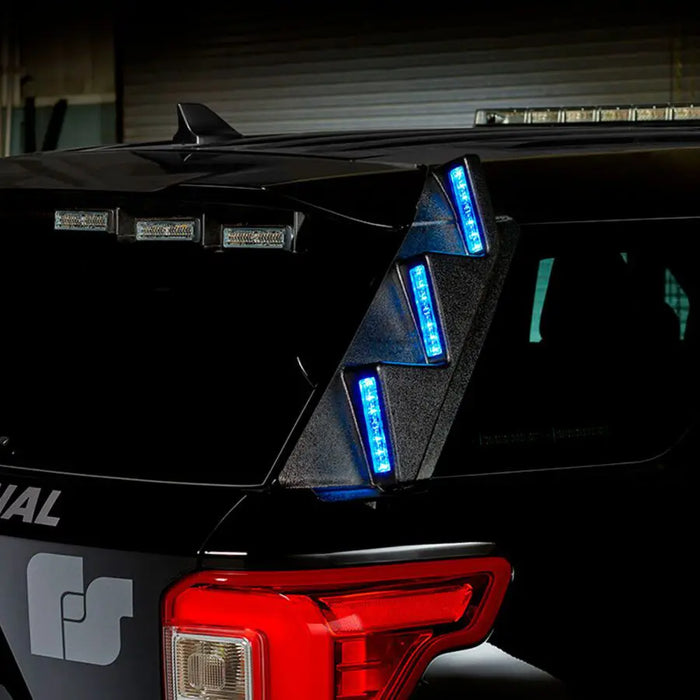

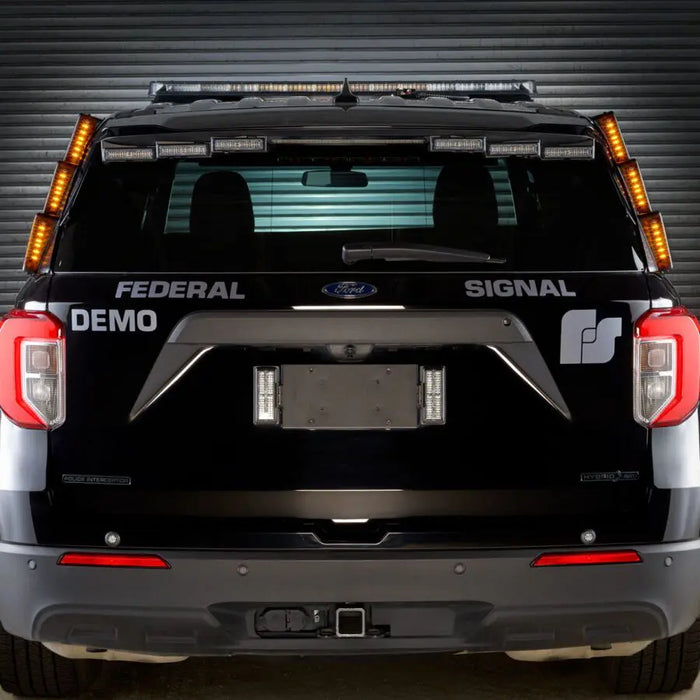

The MicroPulse® Ultra D-Pillar Lighting System improves traffic safety by providing additional rear warning to the vehicle's exterior. The complete D-Pillar lighting systems includes (6) MPS6U tri-color light heads, (2) shroud/bracket assemblies, (2) harnesses, and (1) EXPMOD24 Expansion Module.

The preassembled D-Pillar lighting system with pre-terminated MPS6U light heads creates a faster and simpler installation for the installer. 3M® VHB tape assists in the mounting of the shrouds to the vehicle. Each D-Pillar Lighting system is specific to the vehicle's make and model.

The D-Pillar lighting system is assembled with MicroPulse Ultra light heads, which contain advanced high-output LEDs. The Pillar Light’s MicroPulse Ultra lens is made of UV-resistant polycarbonate to protect against harsh conditions. Certified to meet IP67, MicroPulse Ultra perimeter Pillar Lights have fully encapsulated water-proof housing that provides a barrier against dust, moisture, and water.

The MicroPulse Ultra D-Pillars Lights are controlled by a Convergence Network/FSJoin® siren or controller that can be programmed through the Convergence Network Configuration Software to provide customizable control capability. The standard tri-color MicroPulse Ultra Pillar Lights allow full customization of flash patterns and auxiliary signals such as brake, reverse (when ordered as Red/Blue/White), and turn signals (when ordered as Red/Blue/Amber).

Features:

• D-Pillar warning light system
• System includes vacuum-formed vehicle-specific shrouds, MicroPulse Ultra (6) light heads, (2) shroud/bracket assemblies, (2) harnesses, and (1) 24-channel expansion module
• Tri-color models
• Full customization of flash patterns and auxiliary signals such as brake, reverse, and turn signals
• Multi-voltage, 12/24 Vdc
• Five-year warranty

Specifications:

• Operating current: 0.75 A (Per Head)
• Operating temperature: -40˚ to 176˚ F (-40˚ to +80˚ C)
• Harness/Connection type: Weather Tight
• Dome color: Clear
• Color options: Tri-Color only
• Mount: Surface
• Number of flash patterns: 25
• Approvals: CCR Title 13,IP67
• Dimensions:
  • Length: 26.0 in (66.0 cm)
  • Width: 10.0 in (25.4 cm)
  • Height: 6.7 in (17.0 cm)
