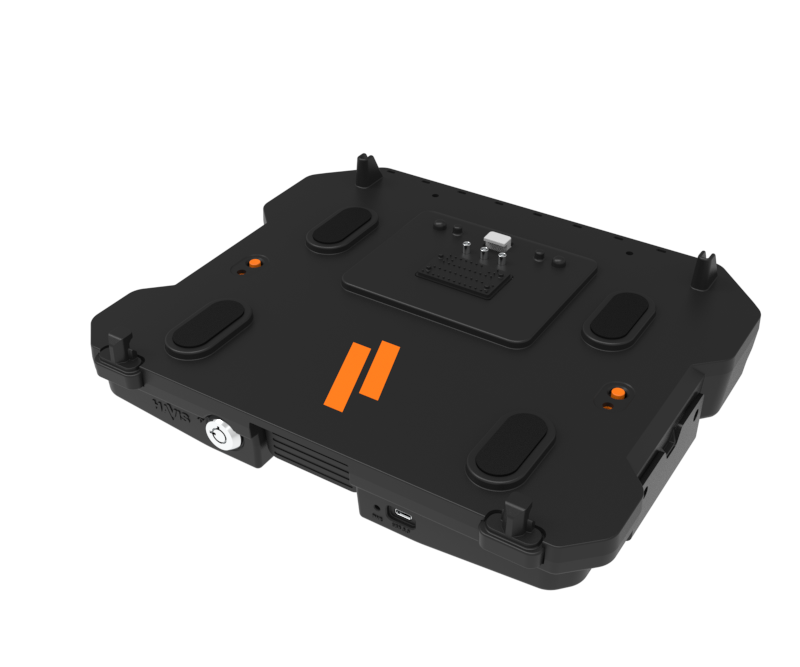

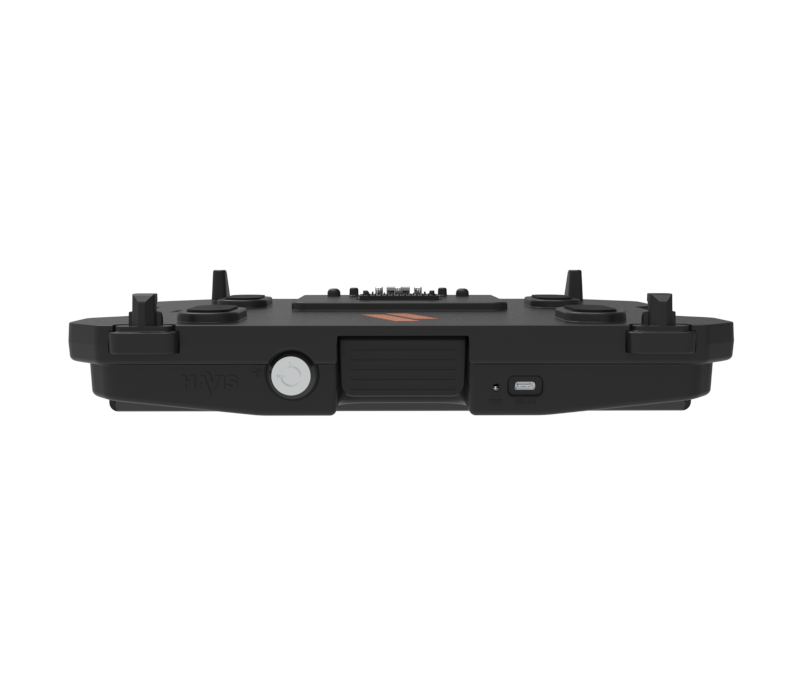

Docking Station For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Advanced Port Replication & Triple Pass-Thru Antenna Connections

Special Order Item

Features:

• Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
• Adjustable & lockable front arms accommodate new and legacy notebooks
• One-handed docking & undocking (patent pending)
• Spring-loaded connector head
• Compact & lightweight

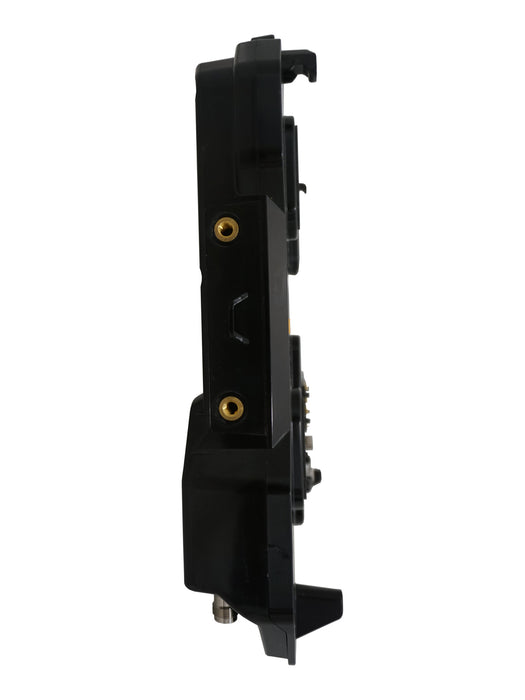

• U-style mounting bracket with seating notch for easy installation
• Rounded corners and edges for safety
• Access to all notebook buttons and ports when docked
• Advanced port replication with integrated cable management system
• Also compatible with 5414, 7214, 5404 & 7204 notebooks
• Keyed lock
• Compatible with screen support (DS-DA-412, sold separately)
• Made in USA

Certifications:

• UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8,
• Crash Test: SAE J1455 30mph crash testing,
• Cycle Test: latch handle & docking connectors mechanism 30,000 cycles,
• Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C),
• EMC: EN 50498:2010;
• ESD: ISO 10605:2008

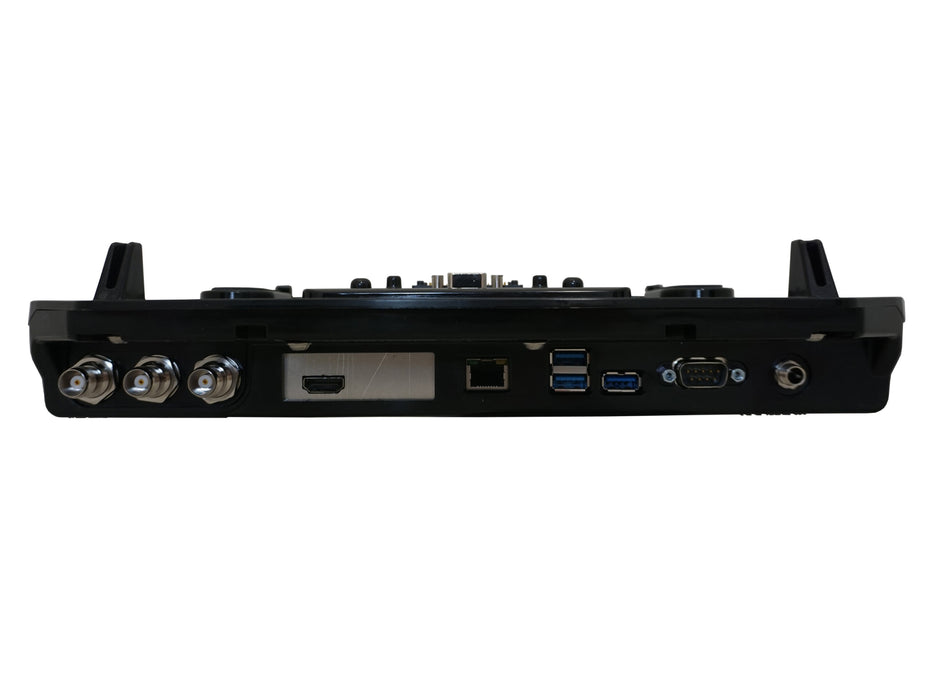

Connectivity includes:

• Fully-powered USB 3.0 (3),
• USB: fully-powered USB 2.0 (1, front facing),
• Ethernet: RJ45 Jack, Gigabit LAN 10/100/1000 Mb/s. (1),
• Serial: DB9 (9-Pin) connection (2),
• Video: VGA (1), HDMI (1),
• Speaker & Mic: (1 each, front facing),
• Input Voltage: 19.5V DC,
• Antenna connections: triple pass-through (TNC connectors)

Specifications:

• Compatible devices: Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
• Dimensions: Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm)
• Product weight: 3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket
• Gross weight: 12 lbs

Owner's Manual (PDF)
