How Do Police Cars Make Their Lights Blink?

Key Takeaways

• Modern police lights use LED technology controlled by electronic flasher circuits that switch LEDs on and off in precise, programmable sequences.
• Flash patterns are stored in the lightbar’s firmware or in a separate controller unit and can often be changed by the officer or fleet installer.
• Common patterns include single flash, double flash, quad flash, alternating, and pursuit modes — each designed for specific situations.
• Centralized control systems like the Whelen Core and Feniex 4200 manage all vehicle lights from one interface.

It’s something most drivers see multiple times a week without giving it a second thought: the rapid blinking of red and blue lights on a police car. The pattern is unmistakable — urgent, attention-grabbing, and instantly recognizable as law enforcement. But how does it actually work? What’s happening inside that lightbar or behind those grille lights to create those precise flashing sequences?

The answer involves a combination of LED technology, electronic flasher circuits, and programmable control systems that have evolved dramatically over the past two decades. This article breaks down the technology behind police light flash patterns, explains how modern systems differ from the old rotating beacons, and covers why the specific patterns matter for officer safety and public awareness. For a hands-on look at the equipment, Strobes N’ More carries a comprehensive selection of law enforcement lighting used by departments across the country.

The Old Way: Rotating Beacons and Mechanical Flashers

Before LEDs, police lights used rotating halogen beacons and mechanical flasher relays. A rotating beacon worked exactly how it sounds: a halogen bulb sat behind a colored lens (or inside a reflective housing), and an electric motor spun the assembly around a central axis. The “flashing” effect was actually the beam of light sweeping past your field of view as the reflector rotated 360 degrees.

Mechanical flashers used electromechanical relays — basically switches that opened and closed on a timed circuit — to turn standard bulbs on and off. The pattern was simple: on, off, on, off, at whatever rate the relay cycled. There was no ability to program different sequences, vary the speed, or coordinate multiple lights.

These systems were loud, power-hungry, mechanically fragile, and limited to one or two basic flash modes. They served law enforcement for decades, but they’ve been almost entirely replaced by electronic LED systems.

How Modern LED Police Lights Create Flash Patterns

Today’s police lights are LED-based, and the flashing is entirely electronic. Here’s how it works at a fundamental level.

Each LED or group of LEDs in a lightbar, grille light, or surface-mount head is connected to a driver circuit — a small electronic board that controls the power flowing to the LEDs. This driver circuit can switch the LEDs on and off extremely quickly, measured in milliseconds. By controlling the timing, duration, and sequence of these on/off cycles across multiple LED groups, the system produces the complex flash patterns you see on the road.

The patterns themselves are stored in firmware — software programmed into a microchip inside the light or controller. This firmware contains a library of flash patterns, and the user selects which pattern to activate using a switch or control panel in the vehicle. Most modern police lights come with 15 to 30 or more built-in patterns.

Common Flash Pattern Types

Single flash: One flash per cycle. Simple and visible, but less attention-grabbing than multi-flash patterns. Often used for steady patrol or parking situations.

Double flash: Two rapid flashes followed by a brief pause. Creates a more urgent visual signal than a single flash. Common on law enforcement vehicles during traffic stops.

Quad flash: Four rapid flashes in sequence. Highly aggressive and attention-commanding. Frequently used during pursuit or high-priority response.

Alternating: Left-side and right-side lights flash in alternation, creating the classic back-and-forth sweep effect. This is one of the most recognizable law enforcement patterns.

Combination/Pursuit: Multiple patterns layered together at maximum flash rate across all available lights. Designed for maximum visibility during high-speed pursuit or emergency response.

For a much deeper breakdown of how each pattern functions and when it’s used, our blog article on decoding flash patterns and colors covers the full spectrum of emergency lighting signals.

The Role of Controllers and Flasher Modules

Individual LED lightheads often have built-in flasher circuits with their own pattern libraries. But on a fully outfitted patrol vehicle, those individual lights need to work together as a coordinated system. That’s where controllers and flasher modules come in.

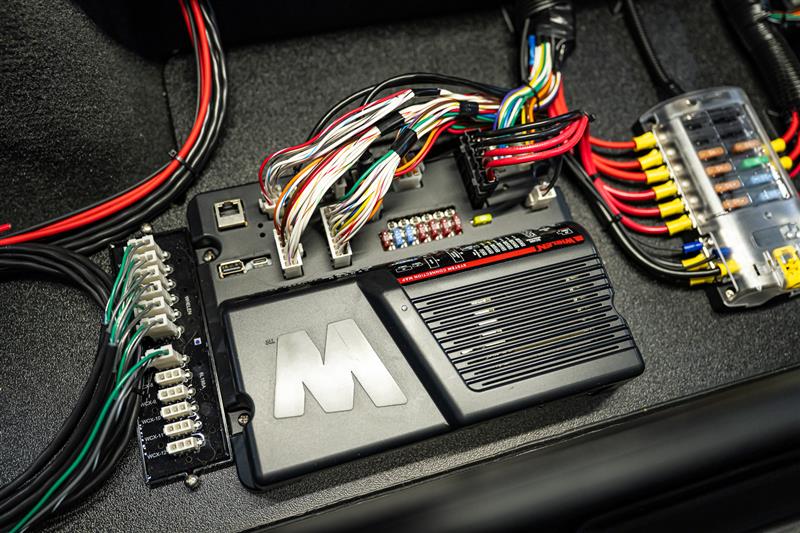

A centralized controller like the Whelen Core system or the Feniex 4200 acts as the brain of the vehicle’s entire warning light package. It connects to every lighthead, lightbar, and siren on the vehicle through a wired network. The officer selects a mode — such as “Response,” “Scene,” or “Traffic Stop” — and the controller simultaneously activates the appropriate lights in a coordinated pattern.

For simpler setups, standalone flasher modules drive individual lights or small groups. The Strobes N’ More 6-Output LED Flasher, for example, provides two independent flashing channels with 31 built-in patterns and a steady-burn override. These modules are popular for supplemental lights on unmarked vehicles, volunteer rigs, and utility trucks.

The switches and controllers available at Strobes N’ More range from basic toggle panels to fully programmable multi-output systems, matching every level of vehicle build complexity.

Synchronization: Making Multiple Lights Work Together

One of the most important capabilities of modern police lighting systems is synchronization. When multiple lightheads flash in coordinated patterns — rather than randomly — the visual effect is dramatically more attention-grabbing and recognizable.

Synchronization works through a sync wire or wireless protocol that connects compatible lights. When one lighthead flashes, it sends a signal to the others, which then flash in the designated sequence: simultaneously, alternately, or in a chase pattern. Most professional-grade lights from manufacturers like Whelen, Feniex, Federal Signal, and SoundOff Signal support synchronization within their product families.

Why Flash Patterns Matter for Safety

Flash patterns aren’t just visual noise. Research has shown that certain patterns are more effective at capturing driver attention, especially in specific conditions. Faster flash rates tend to attract attention more quickly but can cause visual fatigue over extended exposure. Alternating patterns help drivers judge the distance and position of the emergency vehicle. And multi-color combinations (red/blue, or red/blue/white) leverage the contrast between colors to increase conspicuity.

This is why departments and fleet managers invest time in configuring the right patterns for different scenarios. A traffic stop might use a slower alternating pattern to remain visible without blinding nearby drivers. A pursuit uses the fastest, most aggressive combination. A scene management mode might activate only rear-facing lights to protect officers working on the shoulder. It’s all about matching the signal to the situation.

What’s Inside a Typical Patrol Vehicle Lighting System

A fully outfitted marked patrol car typically includes a roof-mounted lightbar with built-in flasher and pattern library, grille and bumper-mounted surface-mount LEDs with sync capability, interior or visor-mounted lightbar for forward-facing warning, rear-deck or hide-away LEDs for rearward coverage, a siren and speaker system, and a centralized controller that manages all of the above from the vehicle console.

Every one of these components contains its own electronic flasher capability, but the centralized controller is what turns them into a unified system. The officer presses one button and the entire vehicle activates in a pre-programmed configuration. That level of integration is what makes modern law enforcement vehicles so much more effective than the single-beacon patrol cars of decades past.

Frequently Asked Questions

How are police light flash patterns created?

Flash patterns are created by electronic driver circuits that switch LED groups on and off in precise, pre-programmed sequences. The patterns are stored in firmware inside the light or in a centralized vehicle controller.

Can police officers change the flash pattern on their lights?

Yes. Most modern police lights offer multiple selectable patterns. Officers or fleet technicians can cycle through available patterns using switches or a programmable controller system.

Why do police lights flash at different speeds?

Different flash speeds serve different purposes. Faster patterns are more attention-grabbing for pursuit and emergency response. Slower patterns are used for scene management where extended visibility without visual fatigue is important.

What’s the difference between a flasher module and a controller?

A flasher module drives one or a few lights with built-in patterns. A controller is a centralized system that manages all lights, sirens, and warning devices on the vehicle from a single interface, coordinating their patterns and modes.
