The Complete Buyer's Mindset Guide to Emergency Vehicle Lighting: From First Search to Final Install

Most people who shop for emergency vehicle lighting buy the wrong thing first, then learn what they actually need on the second try. The fix is simple. Decide how the lights have to perform before you decide what they look like or what they cost.

This guide walks the full path. It starts at the first search, where most mistakes happen, and ends with a bolted-down, wired, legal install. Read it in order, and you will skip the expensive detours.

The First Search is Where Buyers Go Wrong

The typical first search is for a color and a price. "Red and blue light bar, cheap." That search returns thousands of results and zero clarity, because brightness, beam shape, certification, and legality were never entered into the question.

Here is a better starting point. Emergency vehicle lighting is a safety tool with three jobs: warn approaching drivers from far away, hold their attention up close at an intersection or scene, and stay legal for your role and your state. A light that nails one of those jobs can fail the other two. Price tells you nothing about any of them.

So before you look at a single product, answer four questions. What is the vehicle for. Where will it work. What does your state allow? How bright does it need to be? The rest of this guide is those four questions, in order, plus the install.

Start With The Job, Not The Product

The vehicle's role decides almost everything downstream: legal color, required brightness, mounting style, and how much lighting you actually need.

A volunteer firefighter's personal truck and a full-time tow rig face completely different problems. The firefighter needs a courtesy warning that other drivers will yield to on the way to a call. The tow operator needs to survive hours parked on a highway shoulder with traffic passing at 70 mph: same product category, opposite requirements.

Write down the role in one sentence. "Personally owned vehicle for a volunteer EMT responding to calls." "Utility truck working near live traffic." "Construction pickup on a job site and public roads." That sentence is your filter for every choice that follows.

The Legal Filter Comes Before the Shopping Cart

Color law decides what you are allowed to run, and it changes at every state line. Get this wrong, and the lights become a ticket instead of a tool.

Color assignments follow rough national patterns, but the details are set by each state, and they are not optional.

• Blue is reserved for law enforcement in most states. Several states carve out a narrow exception that lets authorized volunteer firefighters run a single blue courtesy light on a personal vehicle, but only with written permission from the fire chief and only while responding.

• Red signals authorized emergency response and is common for fire and EMS. Many states pair it with white.

• Green is the volunteer EMS or first-responder courtesy color in a number of states, and in some places it marks command vehicles.

• Amber is the least restricted color. It says "caution, slow-moving or stopped hazard" rather than "emergency, yield." Tow trucks, utility vehicles, construction equipment, and snow plows live here.

Two facts trip up first-time buyers. A courtesy light is not a right-of-way light. In states that allow a volunteer's blue or green light, that light does not let you speed, run signals, or claim the road. It asks for a yield, nothing more. Second, many of these uses require a permit. A volunteer's blue light often needs a signed authorization card from the chief, and some states issue permits that expire and must be renewed.

Check your own state statute before you buy, not after. The hardware is easy to return. A citation is not.

How Bright is Bright Enough: The SAE Class System

Brightness on emergency lighting is not marketing language. It is a measured standard, and the number you want is the SAE class.

The Society of Automotive Engineers sets the rules that warning lights are tested against. Two standards matter most. SAE J595 covers directional lights, the kind that throw a focused beam forward or back. SAE J845 covers omnidirectional lights, the kind that spread warning in a full circle. Both sort products into the same three tiers by peak intensity, measured in candela:

• Class 1: roughly 8,100 candela and up. This is the primary warning brightness, built to be seen at highway speed and in daylight. Authorized emergency vehicles and many tow trucks need it.

• Class 2: roughly 1,981 to 8,099 candela. Useful for slower roads and as a secondary warning.

• Class 3: below about 1,980 candela. Identification and low-speed marking are not serious roadway warnings.

A few specialized standards layer on top. NFPA 1901 governs warning devices on fire apparatus. The old KKK-A-1822 federal spec shaped ambulance lighting for decades. For most buyers, the practical rule is short: if the vehicle works near fast traffic, look for Class 1. Anything less leaves you underwarned on a highway shoulder, which is the most dangerous place an emergency or work vehicle ever sits.

One more thing the spec sheet hides. Two lights can both claim "Class 1" and behave differently, because J595 and J845 measure the beam at different angles. A surface-mount light might pass J845 for its wide spread but fail J595 because it lacks a straight-ahead punch. If a product lists both certifications, it is genuinely bright and wide. If it lists one, read which job it is built for.

LED, Strobe, or Halogen: The Technology Choice is Mostly Made

For nearly every new install, LED is the answer, and the numbers are not close.

The older options still exist, so it helps to know why they lost. Halogen bulbs make light by heating a filament, and they waste most of their energy as heat. They burn out in around 1,000 hours, draw heavy current, and a single lightbar full of them can pull 15 to 30 amps. Xenon strobe tubes are bright and were a real upgrade in their day, but the tubes last only about six months, and the power supplies a couple of years, and they need time to reach full output.

LED warning lights solve all of that. They last tens of thousands of hours, commonly rated from 25,000 to 50,000 and beyond. They draw a fraction of the current, which matters when your engine is off and the lights are running on the battery at a scene. They turn on at full brightness instantly. Their output does not fade as they age the way a halogen bulb dims toward the end. They are physically tough, with no filament or glass tube to shatter from vibration. They sit low and thin, which cuts wind drag and the fuel cost that comes with it.

LED units cost more up front. Over the life of the vehicle, they cost far less because you are not replacing tubes, bulbs, and power supplies on a schedule. For a deeper look at why this shift happened and what it changed, the technology has its own story worth reading on its own.

Mapping Lights to The Vehicle

There is no single "emergency light." There is a kit of light types, each built for a spot on the vehicle and a job. Plan the coverage first, then pick the parts.

The goal is 360 degrees of warning with no dead angles, plus the ability to light up a work scene if your role needs it.

• Light bars mount on the roof and give the widest, highest, most visible warning. They are the anchor of a serious setup and the most expensive single piece.

• Surface-mount and hideaway lights install flush into the grille, bumper, mirrors, or tail. They are nearly invisible when off, which suits unmarked vehicles and clean civilian looks, and they fill the lower and corner angles a roof bar can miss.

• Dash and deck lights sit inside the cabin against the windshield or rear glass. Quick to install, no drilling, easy to move between vehicles. Good front and rear warning, weaker to the sides.

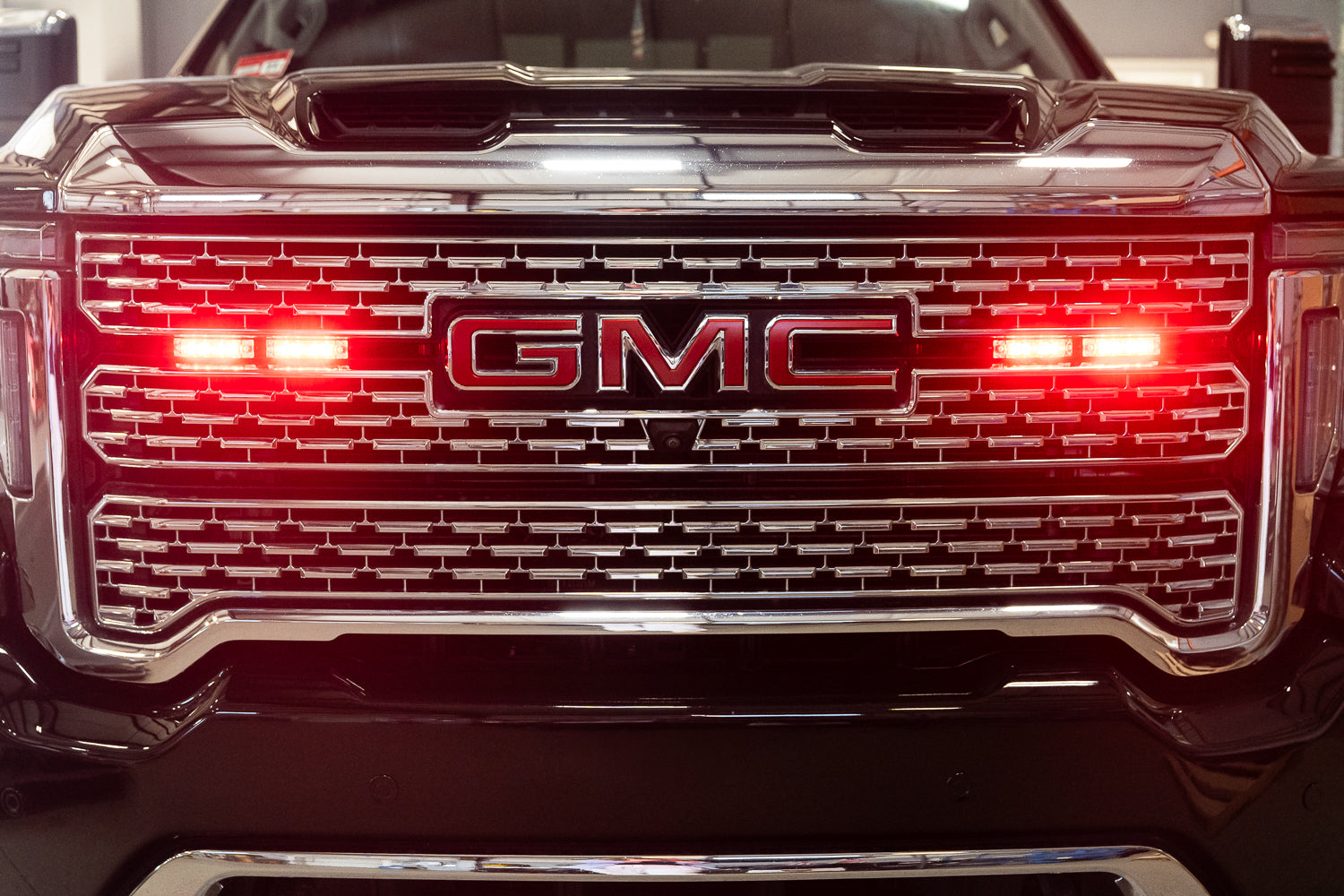

• Grille and headlight-area lights add forward punch low on the vehicle, right in the sightline of oncoming drivers.

• Beacons are the classic rotating or flashing dome, usually amber, for utility and work vehicles that need a simple 360-degree "caution" signal.

• Scene and work lights are steady white floods, not warning lights. They illuminate the ground so people can work safely in the dark. Many modern systems build these into the same housings as the warning LEDs.

Sketch the vehicle from above and mark front, rear, both sides, and the corners. Every one of those needs a warning visible to a driver approaching from that direction. Where you have gaps, add a light type that fills them.

Power, Wiring & Control

Lights are only half the system. The other half is how they are powered, switched, and synchronized, and skipping it is how good lights end up flashing out of sync or draining a battery.

A modern setup runs through a control box or switch panel that handles flash patterns, which lights fire in which mode, and a few features that older systems never had. Pattern programming lets you set single, double, and quad flash sequences. Synchronization makes every light on the vehicle flash together instead of fighting each other, which actually reads as more urgent to other drivers. Many systems now add a day and night mode that dims the lights automatically after dark so they warn without blinding nearby drivers, and load management that reduces draw if the electrical system is getting stressed.

For the firefighter's personal truck, a simple switch and a small controller are plenty. For a fleet vehicle running a full light bar, surface mounts, and scene lights, a multiplex or CAN-bus control system earns its cost by running everything through one brain and a thin wire instead of a tangle of separate runs.

Whatever the scale, plan the wiring before you mount anything. Know where power comes from, how the ground is run, and where the control sits within the driver's reach.

Installation: Do it Yourself or Pay a Pro

Match the install to the complexity. A dash light is a driveway job. A full marked-vehicle build is not.

Dash lights, deck lights, and simple beacons that plug into power and stick or clamp on are reasonable do-it-yourself projects. You need basic wiring sense, a fused power source, and a clean ground. Most people manage these in an afternoon.

A roof light bar with surface mounts, hardwired control, and scene lighting is a different animal. It involves drilling the roof, running wire through the firewall and body panels, sealing every penetration against water, and balancing the electrical load. A bad install here causes leaks, blown fuses, corrosion, and lights that fail at the worst moment. If the vehicle's safety depends on the system, or if drilling the roof makes you hesitate, pay an upfitter who does this for a living. The labor is cheaper than fixing a water leak in a headliner.

Think in Total Cost, Not Sticker Price

The cheapest light is rarely the cheapest choice. Price the system over the years you will own the vehicle.

A bargain halogen or off-brand setup wins at checkout and loses everywhere else: replacement tubes and bulbs, higher current draw, shorter warranty, and the real risk that it fails to meet the SAE class your role needs, which is the kind of saving that costs you in a roadside incident. A quality LED system from a known maker costs more on day one, carries a longer warranty, and usually outlasts the vehicle it is mounted on.

Budget for the whole system, too, not just the headline light bar. The control box, wiring, fuses, connectors, and labor are part of the real number. Buying the bar and discovering you cannot power or control it is a common and avoidable surprise.

The Pre-Purchase Checklist

Run this before you spend a dollar.

1. Role in one sentence. What is this vehicle, and what is it responding to or working near?
2. State law confirmed. Which colors you may run, whether you need a permit, and whether a courtesy light is all you are entitled to.
3. Required SAE class. Class 1 for anything near fast traffic, lower only for slow or off-road use.
4. Technology chosen. LED for nearly every new build.
5. Coverage mapped. 360-degree warning with no dead angles, plus scene lighting if your role needs it.
6. Control and power planned. Switching, flash patterns, synchronization, and a power source that can carry the load.
7. Install decided. Driveway job or upfitter, matched honestly to the complexity.
8. Total cost priced. Lights, control, wiring, labor, and warranty, over the life of the vehicle.

Work that list top to bottom, and the product almost picks itself. You will buy once, install once, and run lights that do the actual job: getting other drivers to see you and move, every single time.
